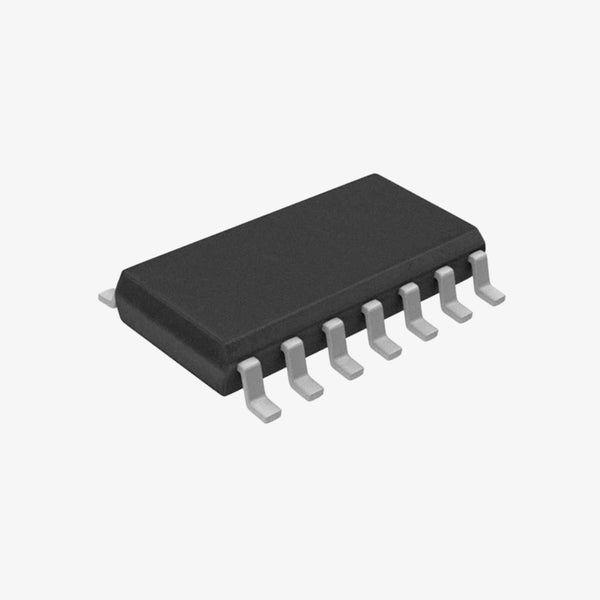

CD4093 Quad 2-Input NAND Schmitt Trigger IC - SOIC-14 SMD Package

The CD4093 is a versatile integrated circuit featuring four Schmitt-trigger circuits. Each circuit operates as a two-input NAND gate with Schmitt-trigger action on both inputs, allowing for different switching points for positive- and negative-going signals. The difference between the positive voltage (VP) and the negative voltage (VN) is known as the hysteresis voltage.Features/Specifications:Product Category: Logic GatesProduct Type: Single-Function GateLogic Function: NANDLogic Type: CMOSNumber of Gates: 4Input Type: Schmitt TriggerNumber of Bits: 4-bitNumber of Input Lines: 2Number of Output Lines: 1High-Level Output Current: -1.5 mALow-Level Output Current: 1.5 mAPropagation Delay Time: 380 nsSupply Voltage Range: 3V to 18VOperating Supply Current: 60 µAOperating Supply Voltage: 10VQuiescent Current: 40 nAOperating Temperature Range: -55°C to +125°CMounting Style: SMD/SMTPackage/Case: SOIC-14Package Includes:1 x CD4093 Quad 2-Input NAND Schmitt Trigger IC – SOIC-14 PackageNote: Product images are for illustrative purposes only and may differ from the actual product.

INR 15 · Out of stock
