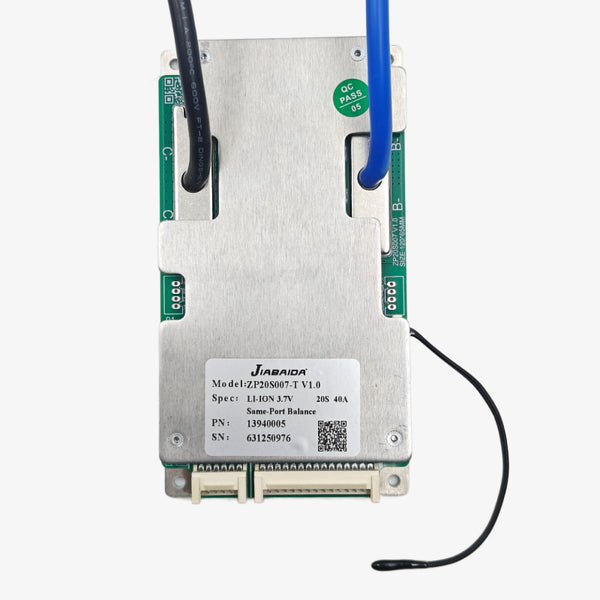

Jiabaida (JBD) Li-ion 20S 72V 40A Battery Management System - BMS Protection Board

Jiabaida (JBD) Li-ion 20S 72V 40A BMS is a robust Battery Management System designed for 20-cell Li-ion battery packs (72V nominal). It provides complete protection with advanced circuitry to safeguard against overcharging, over-discharging, overcurrent, and short circuits. Supporting same-port charging and discharging, this BMS is ideal for high-capacity applications such as e-bikes, e-scooters, solar storage systems, and DIY energy packs.The aluminum plate ensures heat dissipation, while its balancing feature improves battery health and lifespan.Jiabaida (JBD) Li-ion 20S 72V 40A BMS Features:Designed for 20S (72V nominal) Li-ion battery packsContinuous discharge current up to 40ASame-port charging and discharging for simplified wiringOvercharge, over-discharge, overcurrent, and short-circuit protectionIntegrated balancing for stable battery performanceAluminum casing for improved thermal managementSuitable for high-power battery-powered systemsJBD Li-ion 20S 72V 40A BMS Specifications:SpecificationValueModelJZP20S07-T V1.0Supported Cells20S (Li-ion)Nominal Voltage (V)72Charge Voltage (V)84Continuous Discharge (A)40Charge Current (A)20Balance FunctionYes (Same-Port Balance)Operating Temperature (°C)-20 to 70Dimensions (mm)120 x 65 x 12 mm Package Includes:1 x JBD Li-ion 20S 72V 40A Same-Port Battery Management System - BMS Protection Board
