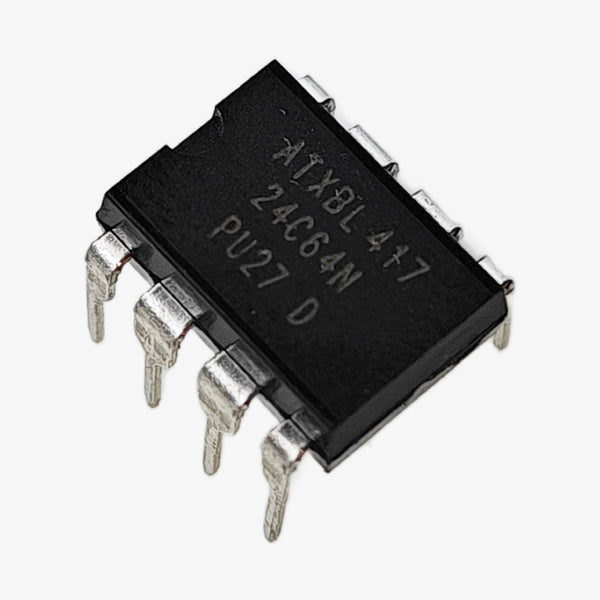

24C64 64K bit Serial I2C Bus EEPROM IC- 8 Pin DIP Package

The 24C64 IC is a 64 Kbit serial electrically erasable PROM (EEPROM) organized as eight blocks of 1K, each having 8 bits (8K x 8 bits). It also offers page-write capabilities of up to 32 bytes of data with a data retention of more than 40 years. This I2C complaint IC permits a maximum of 8 devices to share a common 2 wire bus. It operates on voltage range between 2.5V to 5.5V at clock frequency of up to 400 KHz. It is highly optimized for low power, low voltage applications such as data acquisition or personal communication. The 24C64 EPROM IC is an 8 pin IC that can be accessorized with 8 Pin DIP IC Base/Socket.PIN DESCRIPTION OF 24C64 EEPROM IC Signal Names Features of 24C64 EEPROM ICMemory array: 64 Kbit (8 Kbyte) of EEPROM, Page size: 32 byteCompatible with all I2C bus modes: 1 MHz, 400 kHz ,100 kHzBidirectional Data Transfer ProtocolSingle supply voltage: 2.5 V to 5.5 V over –40 °C / +85 °C ; 1.6 V to 5.5 V over 0 °C / +85 °CRandom and Sequential Read modesWrite protect of the whole memory arrayWrite: Byte Write within 5ms and Page Write within 5msMore than 40 years of data retentionHighly reliable Package Contents1× 24C64 EEPROM IC

INR 15 · In stock
