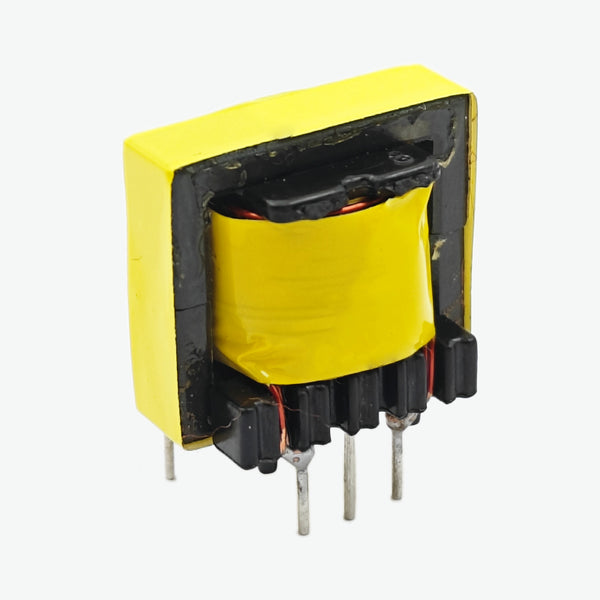

EE19 SMPS High Frequency 20W PCB Mount Transformer

The EE19 High-Frequency SMPS Transformer is designed for compact, efficient power delivery in switch-mode power supply (SMPS) circuits with power ratings up to 20 watts. Featuring a PC40 ferrite core and precision-wound high-grade copper wire, this transformer ensures reliable isolation and consistent voltage conversion. With its broad operating frequency range and sturdy construction, it's ideal for use in AC-DC or DC-DC converters, power adapters, and various low-power modules.Features of EE19 SMPS 20W Transformer:EE19 core with PC40 ferrite material for low core lossesSupports up to 20W power supply circuitsWide working frequency range: 20kHz to 500kHzHigh-grade copper windings for excellent conductivity and long-term durabilityCompact form factor optimized for PCB mountingThrough-hole mounting ensures secure and stable installationSpecifications of EE19 SMPS 20W Transformer:Model Number: EE19Core Material: PC40Phase: SinglePower Rating: 20 WattsPrimary Inductance: ~1.2mHTurns Ratio: 130:16Working Frequency: 20kHz ~ 500kHzWinding Material: High-Grade CopperTemperature Range: -15°C to +105°CNo. of Poles: 5 PinMounting Style: Through HoleDimensions (L×B×H): 19.3mm x 12.6mm x 19.1mmWeight: 10gNote: This is a switching power supply transformer and is not suitable for direct use with 220V 50Hz mains power. Connecting it directly to 50Hz AC will damage the transformer.Package Includes:1 × EE19 SMPS High Frequency 20 Watt PCB Mount Transformer

INR 35 · In stock
