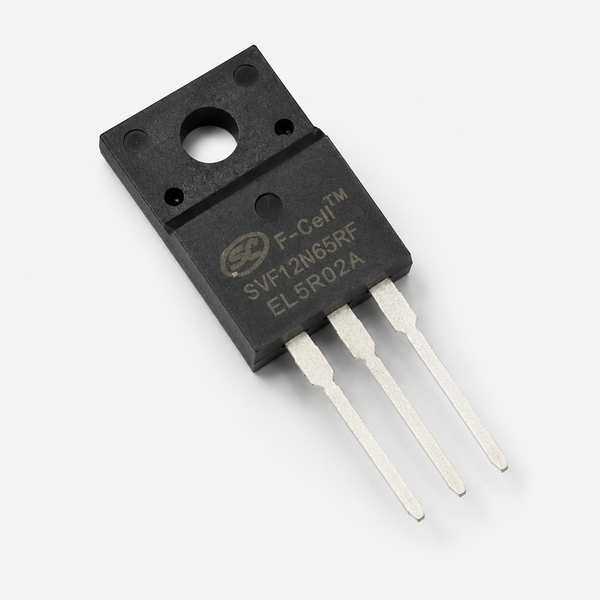

SVF12N65RF N-Channel 650V 12A Power MOSFET - TO-220 Package

SVF12N65RF N-Channel 650V 12A Power MOSFET - TO-220 Package is a high-voltage N-channel enhancement mode power MOSFET designed for switching power supplies, LED drivers, battery chargers, adapters, inverters, UPS systems, and other high-frequency power switching applications. Manufactured using advanced F-Cell™ VDMOS technology, it offers low ON-state resistance, fast switching performance, high avalanche capability, and excellent reliability for demanding power conversion circuits.SVF12N65RF N-Channel 650V 12A Power MOSFET - TO-220 Package DatasheetFeatures:650V Drain-Source Voltage12A Continuous Drain CurrentN-Channel Enhancement Mode MOSFETLow ON-State ResistanceFast Switching PerformanceHigh Avalanche Energy CapabilityLow Gate ChargeLow Reverse Transfer CapacitanceImproved dv/dt CapabilityTO-220 Through-Hole PackageRoHS CompliantSuitable for SMPS, LED Drivers, Adapters, UPS, and InvertersSpecifications:ParameterValueProduct TypeN-Channel Power MOSFETModelSVF12N65RFDrain-Source Voltage (VDS)650VContinuous Drain Current (ID)12APulsed Drain Current (IDM)48AGate-Source Voltage (VGS)±30VDrain-Source ON Resistance (RDS(on))0.64Ω Typ, 0.80Ω Max @ VGS = 10VGate Threshold Voltage (VGS(th))2V to 4VPower Dissipation (PD)50WTotal Gate Charge (Qg)32nC TypInput Capacitance (Ciss)1450pF TypReverse Transfer Capacitance (Crss)11pF TypSingle Pulse Avalanche Energy (EAS)360mJOperating Junction Temperature-55°C to +150°CStorage Temperature-55°C to +150°CPackage TypeTO-220Mounting TypeThrough Hole (THT)PolarityN-ChannelComplianceRoHS Also Check These Out:CMF13N65 CMOS N-Channel MOSFET - TO-220F DIP PackageP13NK60ZFP N-Channel MOSFET 600V 13A - TO-220 DIP PackageFS8205A Dual N-Channel Power MOSFET - TSSOP-8 SMD PackageIRF840 Power MOSFET - 8A - TO-220 PackagePackage Includes:1 x SVF12N65RF N-Channel 650V 12A Power MOSFET - TO-220 Package

INR 56 · In stock
