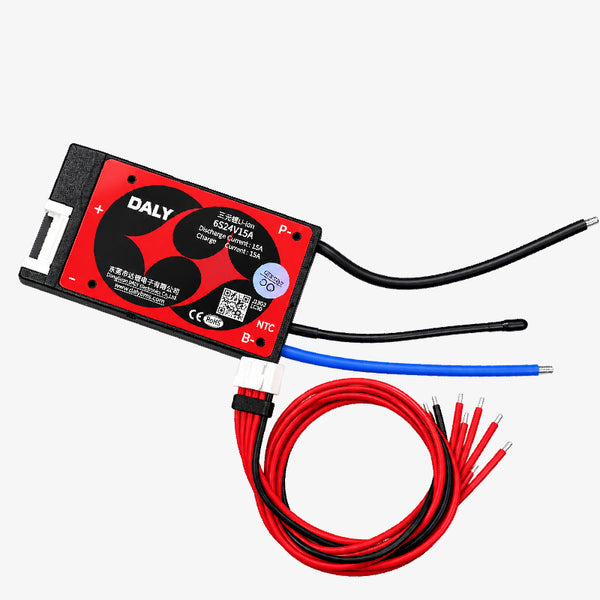

DALY Li-ion NMC 6S 24V 15A Waterproof Battery Management System - BMS Protection Board

DALY Li-ion NMC 6S 24V 15A Waterproof Battery Management System - BMS Protection Board is a 6-series DALY Battery Management System designed for NMC (ternary lithium) battery packs in the 24V class. The unit shown is rated for 15A charging and 15A discharging and uses a common-port architecture with B- and P- connections. It provides protection against overcharge, over-discharge, over-current, short circuit, and abnormal temperature conditions, while its integrated passive balancing function helps maintain cell-voltage consistency during charging. The waterproof-style enclosed construction provides additional protection for battery-pack applications. DALY documentation lists passive balancing as a standard BMS function and identifies the J13G3 family as supporting Li-ion/LiFePO4 configurations, with the exact chemistry selected according to the BMS version. DALY Li-ion NMC 6S 24V 15A Waterproof Battery Management System - BMS Protection Board DatasheetFeatures:DALY 6S 24V 15A NMC/Li-ion BMSJ13G3 series BMSDesigned for 6-cell series NMC battery packs22.2V nominal battery voltage25.2V fully charged battery voltage15A charging current15A continuous discharge currentCommon-port charging and discharging configurationIntegrated passive cell balancingOvercharge protectionOver-discharge protectionDischarge over-current protectionCharge over-current protectionShort-circuit protectionTemperature protectionNTC temperature sensingHigh-current PCB trace designEnclosed waterproof-style housingExternal cell-balance wiring harnessSeparate B- and P- power connectionsSuitable for 6S NMC/ternary lithium battery packsSuitable for electric mobility, portable power, battery packs, and energy-storage applicationsCompact DALY J13G3-series constructionRoHS-compliant DALY BMS platformSpecifications:SpecificationValueManufacturerDALYSeriesJ13G3Product TypeBattery Management SystemBattery ChemistryNMC / Ternary Lithium-IonBattery Configuration6SNumber of Cells in Series6Nominal Battery Voltage22.2VSystem Voltage Class24VMaximum Charge Voltage25.2VCharging Current15ADischarging Current15APort ConfigurationCommon PortBalancingYesBalancing TypePassiveOvercharge ProtectionYesOver-Discharge ProtectionYesDischarge Over-Current ProtectionYesCharge Over-Current ProtectionYesShort-Circuit ProtectionYesTemperature ProtectionYesTemperature SensorNTCBattery NegativeB-Power NegativeP-Cell MonitoringYesBalance ConnectionMulti-wire Cell Sampling HarnessBMS SeriesJ13G3EnclosureProtective Molded HousingMounting TypePCB BMS ModuleApplication6S NMC Battery PacksPin Configuration:ConnectionFunctionB-Battery Pack NegativeP-Common Charge/Discharge NegativeB1Cell 1 Positive / Cell SamplingB2Cell 2 Positive / Cell SamplingB3Cell 3 Positive / Cell SamplingB4Cell 4 Positive / Cell SamplingB5Cell 5 Positive / Cell SamplingB6Cell 6 Positive / Pack Positive SamplingNTCTemperature SensorExplore wide range of DALY Smart BMS >Also Check These Prodcuts:-DALY LiFePo4 4S 12V 40A Waterproof Battery Management System DALY LiFePo4 4S 12V 100A Waterproof Battery Management System DALY LiFePO4 4S 12V 50A Waterproof Battery Management SystemPackage Includes:1 × DALY Li-ion NMC 6S 24V 15A BMS Protection Board1 × Cell Balance Wiring Harness1 × NTC Temperature Sensor1 × BMS Connection Wiring Set

INR 620 · In stock
