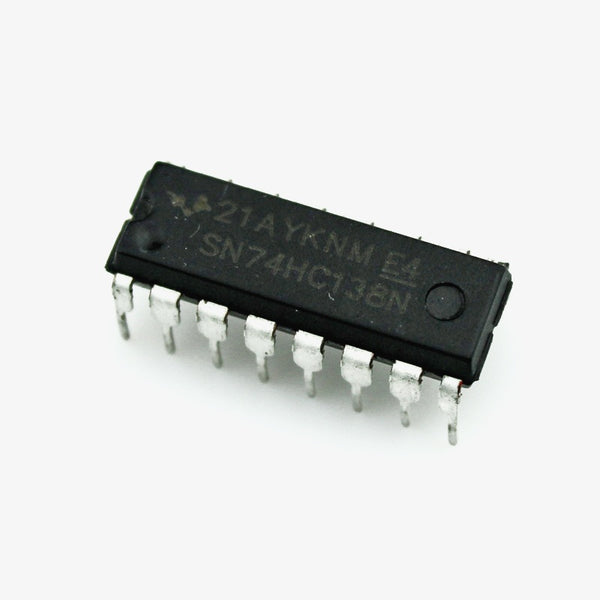

74HC138 IC - 3:8 Line Decoder/Demultiplexer IC

The 74HC138 is a 3:8 Decoder IC which is, it can control 8 output pins (Y0 to Y7) by just using three address pins (A0 to A2) as inputs. The IC also has 3 Enable pins which can be used to cascade more than 1 IC to control more output pins. The IC is used in application where there is a constraint for GPIO pin on the Microcontroller and multiple peripheral control is required. The specification of the IC is give below:74HC138 IC Specifications and Features Operating Voltage: 2V to 6VInput rise and fall time: 500nS @ 4.5VccMinimum high level input voltage: 3.15V @ 4.5VccMaximum low level input voltage: 1.35V @ 4.5VccSinks or sources 8 mA at VCC = 4.5VCMOS low power consumptionSchmitt Trigger Action at All InputsPackage Includes:1 x 74HC138 IC

INR 18 · In stock
