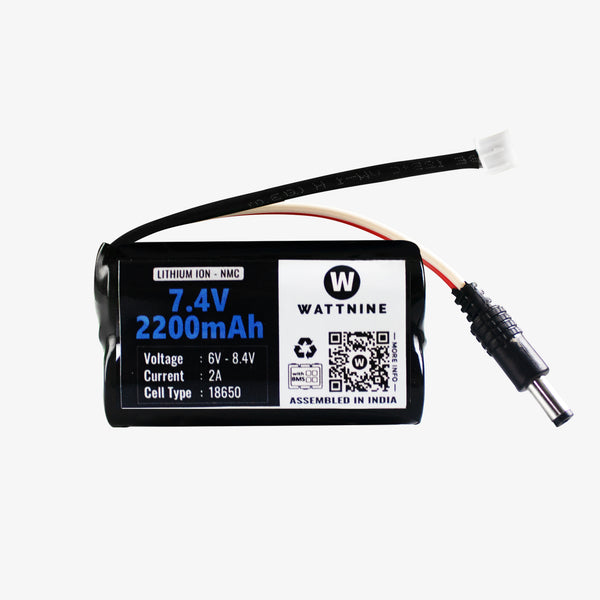

WATTNINE® 7.4V 2200mAh Rechargeable Lithium Battery Pack with Warranty (Includes BMS & Balance Pin) - 2S 1P

This is a 2S 7.4V 2200mAh Lithium Battery Pack built using 2200mAh 18650 cells. All the cells are connected in series and thus provide a nominal output voltage of 7.4volts. The battery pack consists of an in-built BMS which ensures safe operation of the cells during charging and discharging. Datasheet / SpecificationRecommended Charger - Charging Time B3 Pro Charger for Li-ion - 3Hrs SpecificationCharging Voltage- 8.4VCharging Current- 1ANominal Pack Voltage- 7.4VDischarge Current- Tested for 500mA, 1A, 2AMax. Discharge current - 2AProtection (Included BMS)Short Circuit ProtectionUpper charge cut-off threshold : 8.4VLower cutoff threshold : 5.5VApplications:Small scale UPS BatteryBattery for GPS Tracking - Vehicle Tracking - Asset TrackingWifi Modem or Router Battery for backupPSPIndustrial MachinesEmergency LightsRobotics and RC carsMusic Players and Audio Systems Solar Lights How to charge this 7.4V lithium battery pack?The battery pack can be charged and discharged using the same DC Jack connector. To charge the battery just connect it to a female DC barrel connector and provide 8.4V (4.2V per cell) to the positive pin and ground to the negative pin. Monitor the increase in the voltage with time and stop charging after the pack has reached more than 8.2V. Using RPS to charge the cell will provide better control and understanding. When to charge the battery pack?Disconnect the cells from the load when the voltage has dropped to 6V (3V per cell) or below and charge them before you can use them again. Over discharging the cells might damage them permanently. Note: Lithium batteries can become unstable, if not handled properly, resulting in heat or fire. Safety precautions and prior knowledge is advised. Warranty Terms:This battery pack comes with 3 year warranty from the date of purchase. Warranty is void if the pack/connector is physically damaged.

INR 366 · In stock
