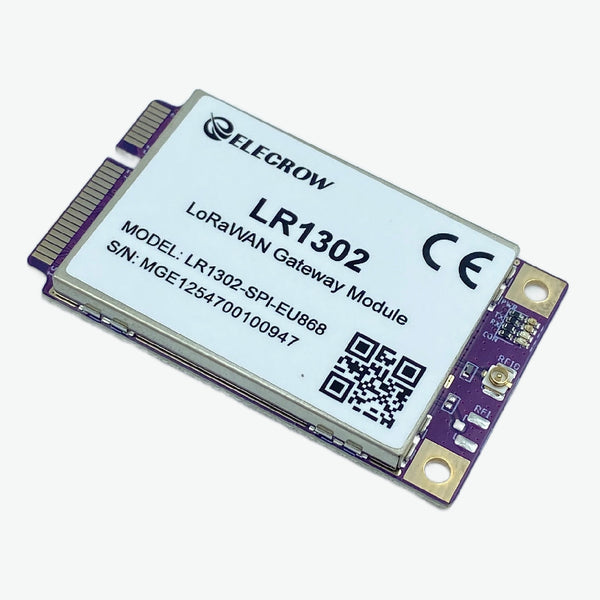

Elecrow LR1302 LoRaWAN SPI EU868 SX1302 Long Range Gateway Module

Elecrow LR1302 LoRaWAN SPI EU868 SX1302 Long Range Gateway Module (8 Channels) is designed for building high-performance LoRaWAN gateways with low power consumption and long-range communication. Ideal for IoT networks, smart cities, industrial monitoring, and large-scale sensor deployments.Note:- Without Pi HAT With Antenna KitFeatures:Semtech SX1302 LoRa® Baseband ChipSupports 8-Channel LoRaWAN CommunicationHigh Sensitivity up to -139 dBmHigh TX Power up to 26 dBmMini PCIe Form Factor for Easy IntegrationUltra Low Power ConsumptionSupports LBT (Listen Before Talk)CE Certified for Easy DeploymentSpecifications:ParameterValueBrandElecrowRegionEU868 / US915Frequency Range863 – 870 MHz (EU868) / 902 – 928 MHz (US915)ChipsetSemtech SX1302 + SX1250Sensitivity-125 dBm (SF7), -139 dBm (SF12)TX PowerUp to 26 dBm (EU) / 25 dBm (US)Bandwidth125 / 250 / 500 kHzInterfaceSPI (Mini PCIe)Form FactorMini PCIe (52-pin)Antenna ConnectorU.FLPower Consumption (SPI)Standby: 7.5 mA, RX: 40 mA, TX: 415 mAPower Consumption (USB)Standby: 20 mA, RX: 53 mA, TX: 425 mAOperating Temperature-40°C to +85°CDimensions30 × 50.95 mm Discover Elecrow products such as Arduino starter kits, ESP32 HMI displays, CrowPanel touch screens, and IoT development modules, ideal for electronics prototyping, automation, embedded systems, and smart device development.Package Includes:1 x Elecrow LR1302 LoRaWAN SPI EU868 SX1302 Long Range Gateway Module
