ODROID-C5 with DDR4 4GByte RAM

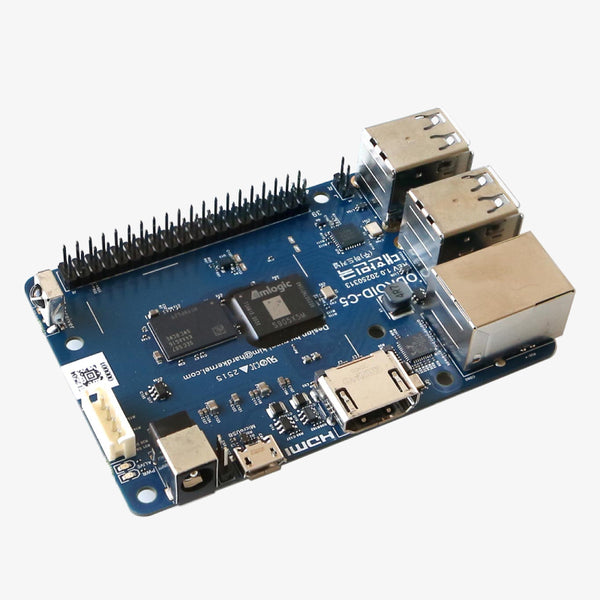

ODROID-C5 with DDR4 4GByte RAM is a compact and powerful single-board computer powered by the Amlogic S905X5M processor. Featuring a Quad-Core Cortex-A55 CPU, ARM G310 V2 GPU, high-speed DDR4 memory, and Gigabit Ethernet connectivity, it is ideal for media centers, Linux development, embedded systems, networking applications, and edge computing projects.ODROID-C5 with DDR4 4GByte RAM DatasheetFeatures:Amlogic S905X5M Quad-Core ProcessorQuad-Core Cortex-A55 up to 2.5GHzARM G310 V2 GPU at 850MHz4GB DDR4 High-Speed MemoryHigh-Speed eMMC HS400 SupportGigabit Ethernet ConnectivityHDMI 2.0 with 4K@60Hz Support40-Pin GPIO Expansion HeaderLow Power Consumption DesignCompact Form FactorBoard Details:A – CPU (Amlogic S905X5M): Quad-Core Cortex-A55 Processor running up to 2.5GHzB – DDR4 Memory: 4GB High-Speed DDR4 RAMC – USB 2.0 Host Ports: 4 × USB 2.0 interfaces for peripherals and accessoriesD – RJ45 Ethernet Port: Gigabit Ethernet connectivity (10/100/1000 Mbps)E – HDMI 2.0 Port: Display output supporting up to 4K@60Hz resolutionF – Micro USB 2.0 OTG Port: USB device and host mode interfaceG – DC Power Jack: Main power input connector (5.5mm outer, 2.1mm inner diameter)H – System LED Indicators: Power and system activity status indicatorsI – UART Console Port: Serial communication and system debugging interfaceJ – IR Receiver: Infrared remote control inputK – 40-Pin GPIO Header: Expansion interface for sensors, modules, and peripheralsL – Stereo Audio Output: 2-pin analog audio output connectionM – eMMC Module Socket: High-speed HS400 eMMC storage interfaceN – Micro SD Slot: Expandable storage support via microSD cardO – Alternative Power Input: 2-pin auxiliary power connector for board power supplySpecifications:ParameterValueBrandHardkernelModelODROID-C5Product TypeSingle Board ComputerProcessorAmlogic S905X5MCPUQuad-Core ARM Cortex-A55CPU FrequencyUp to 2.5GHzGPUARM G310 V2GPU Frequency850MHzRAM4GB DDR4Memory Bus Width32-bitMemory Data Rate3200 MT/sStorage SupportMicroSD Card, eMMC ModuleeMMC InterfaceHS400MicroSD SupportUHS-I SDR104EthernetGigabit RJ45 (10/100/1000 Mbps)USB Host Ports4 × USB 2.0USB OTG1 × Micro USB OTGVideo OutputHDMI 2.0 up to 4K@60HzAudio OutputHDMI Digital Audio, Analog Stereo Line-OutGPIO Header40-PinUART Console921600bps Debug Serial ConsoleGPIO Logic Level3.1VMaximum GPIO Input Voltage3.4VPower Input Voltage7.5V – 15.5V DCRecommended Power Supply12V / 2AIdle Power Consumption≈ 1WCPU Stress Power Consumption≈ 2.5WPower Off Consumption≈ 0.22WDimensions85 × 56 × 22 mmWeight42 g Also Check This Products:-ODROID-N2+ with 4GByte RAMODROID-M1S with 4GByte RAM with US plugODROID-N2+ with 2GByte RAMPackage Includes:1 x ODROID-C5 with DDR4 4GByte RAM

Check price on store · Out of stock
