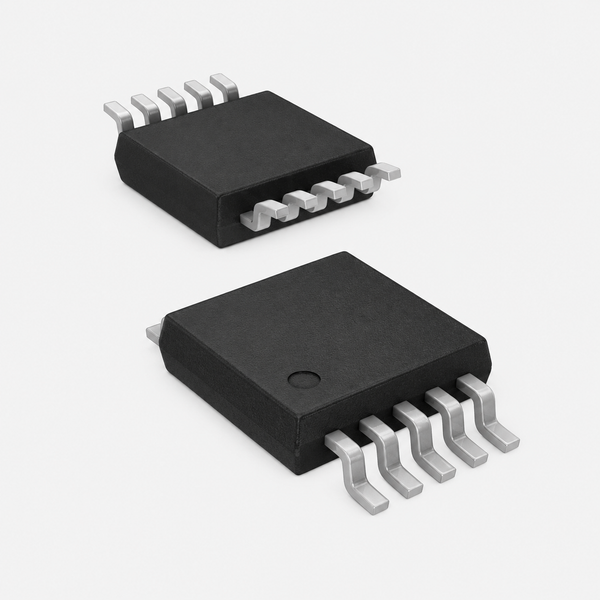

ADS1115IDGSR TI 16-Bit 2V~5.5V 860Hz ADC IC - VSSOP-10 Package

ADS1115IDGSR 16-Bit 2V~5.5V 860Hz Analog to Digital Converter (ADC) IC - VSSOP-10 Package (RoHS) is a high-precision 16-bit Analog-to-Digital Converter (ADC) featuring four single-ended or two differential input channels with an integrated programmable gain amplifier (PGA). Designed for low-power applications, it communicates through an I²C interface and supports data rates up to 860 samples per second, making it ideal for sensor measurement, industrial automation, battery-powered devices, instrumentation, and embedded systems.ADS1115IDGSR 16-Bit 2V~5.5V 860Hz Analog to Digital Converters DatasheetFeatures:16-Bit High Resolution ADC4 Single-Ended or 2 Differential InputsI²C Compatible InterfaceProgrammable Gain Amplifier (PGA)Data Rate up to 860Hz Wide Supply Voltage RangeLow Power ConsumptionInternal Voltage ReferenceSingle-Shot and Continuous Conversion ModesBuilt-in Digital ComparatorRoHS CompliantSuitable for Sensor Interfaces, Data Acquisition, Industrial Control, and Embedded SystemsSpecifications:ParameterValueProduct TypeAnalog to Digital Converter (ADC)Part NumberADS1115IDGSRResolution16-BitSupply Voltage2.0V–5.5VInterfaceI²CInput Channels4 Single-Ended / 2 DifferentialSampling RateUp to 860 SPSPGA Gain±0.256V to ±6.144VInput TypeSingle-Ended / DifferentialComparatorProgrammable Digital ComparatorOperating Temperature-40°C to +125°CPackageVSSOP-10RoHS ComplianceYesPin Configuration:PinNameDescription1ADDRI²C Address Select2ALERT/RDYComparator / Ready Output3GNDGround4AIN0Analog Input 05AIN1Analog Input 16AIN2Analog Input 27AIN3Analog Input 38VDDSupply Voltage9SDAI²C Data10SCLI²C ClockAlso Check These Out:AN7112 Audio Power Amplifier ICTDA2822M Amplifier ICHT12D (RF Decoder) ICPackage Includes:1 x ADS1115IDGSR 16-Bit 2V~5.5V 860SPS Analog to Digital Converter (ADC) IC - VSSOP-10 Package (RoHS)

INR 144 · In stock
