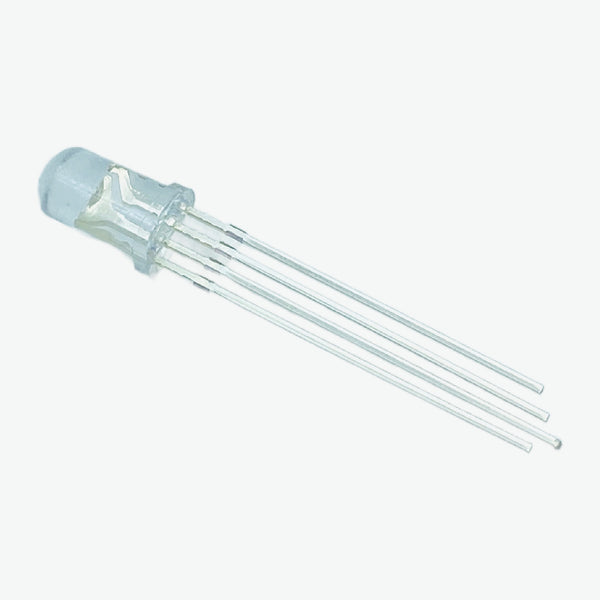

RGB LED - 5mm - Common Anode

RGB LED - 5mm - Common Anode is a versatile multicolor LED designed for creating a wide range of colors using red, green, and blue light combinations. It features a 4-pin configuration with a common anode and is available in a diffused or water clear package for uniform light output. With high brightness, low power consumption, and wide operating conditions, it is ideal for decorative lighting, indicators, and embedded electronics projects.Features:High BrightnessLow Current ConsumptionLarge Operating Voltage RangeWide Operating ConditionsColor: Red, Green & BlueSpecifications of RGB LED:Ideal for Multicolor displaysLow current consumption5mm diameterLED Type : Water Clear/ DiffusedView Angle: Water Clear 360 degrees; Diffused 250 degreesLuminous Flux :4-5LMOperating Temperature is -24 - 85 °CWavelength :- RED : 625nm; Green: 520nm; Blue: 467nm Forward Current :- Red: 20 mA; Green: 20 mA; Blue: 20 mAForward Voltage :- Red: 1.8V – 2.2V; Green: 3.0V – 3.4V; Blue: 3.0 V – 3.4VLuminous intensity :- Red: 800 mcd; Green: 4000 mcd; Blue: 900 mcdTo prolong the lifespan of the LED, the input current should be below 20mA.Package Includes:1pc of RGB LED - 5mm.

INR 4 · In stock
