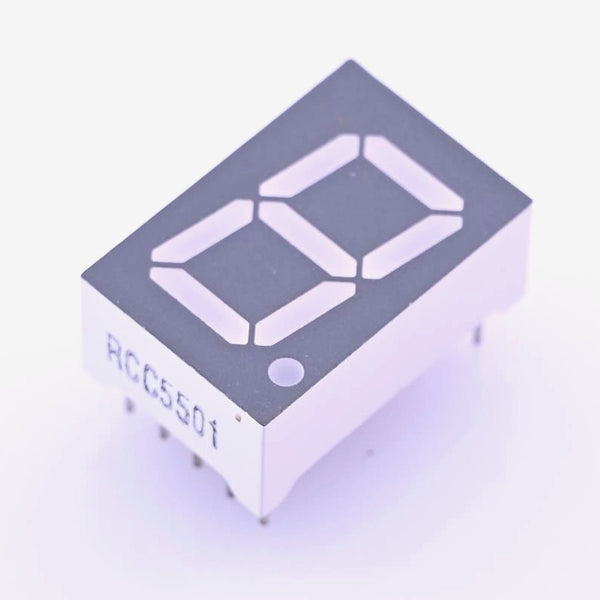

7-Segment Display (Common Cathode) - Red - 0.56 inch

This is a 13 mm single character 0.56 inch 7-segment common cathode display. It is designed such that all the cathode pins of the LEDs are connected to ground. The viewing distance can be up to 7m and the display color is red. Alternative to this, is the 7-segment common anode display. Pin Description of the 7-Segment Display Specifications of the seven segment common cathode Evenly lighted segmentsCommon- Cathode CircuitryColor : RedWide Viewing angle, ± 50 ° angleLuminous intensity: 2800 to 9000 ucdWavelength: 612 to 625 nmTypical forward voltage : 2VCurrent Consumption : 30mA/segmentPeak Current :70mAPackage: 13mm Additional Resources7-Segment display datasheetPackage Includes1 x 7-Segment Display (Common Cathode) - Red

INR 9 · In stock
