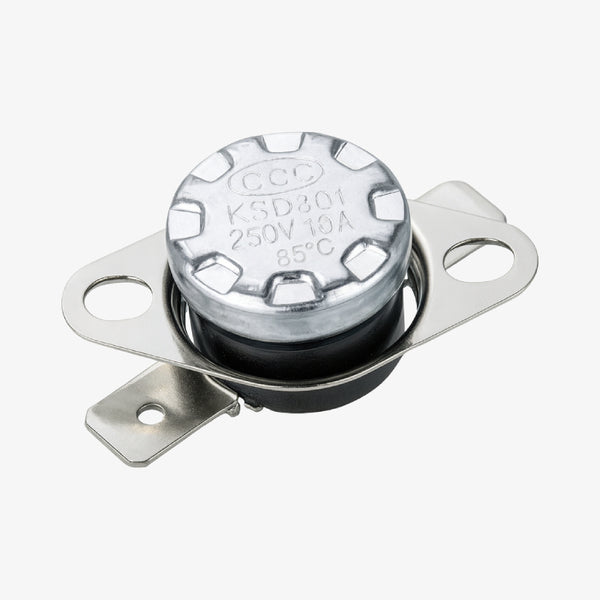

Bakelite KSD301 Temperature Controlled 85ºC Normally Closed Switch Thermostat - 10A 250V

The 250V 10A KSD301 Temperature Controlled Switch is a bimetal-activated thermostat designed for automatic temperature regulation and overheating protection. This 85ºC Normally Closed (NC) variant keeps the circuit closed under normal temperature conditions and opens when the preset cutoff temperature is reached. Once the temperature drops below the threshold, the switch automatically resets. With its durable metal housing and 10A current rating, it is suitable for appliances, power supplies, heating elements, motors, battery packs, and thermal safety circuits.Features:85ºC Normally Closed (NC) temperature cutoffAutomatically resets after coolingHigh current rating of 10A at 250V ACFast thermal response due to metal housingReliable bimetal disc mechanism for long lifeIdeal for overheating protection and thermal control systemsEasy installation with two-terminal mountingSpecifications:Model: KSD301Type: Temperature Controlled Thermostat SwitchTemperature Rating: 85ºC (NC – Normally Closed)Operation: Opens at 85ºC, closes on coolingContact Type: Normally ClosedRated Current: 10ARated Voltage: 250V ACTolerance: ±5°C (typical)Contact Resistance: ≤50mΩInsulation Resistance: ≥100MΩHousing Material: MetalReset Type: Automatic resetTerminal Style: 2-pin connectionMounting Type: Flange/plate mountApplications: Heaters, motors, chargers, appliances, battery packs, thermal cutoffsPackage Includes:1 × Bakelite KSD301 Temperature Controlled 85ºC Normally Closed Switch Thermostat – (10A 250V)

INR 28 · In stock
