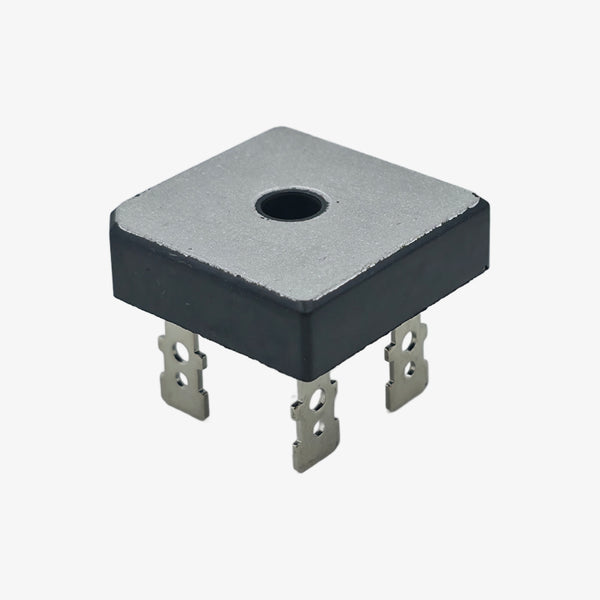

GBPC3510 35A 1000V Bridge Rectifier Diode Module

The GBPC3510 Bridge Rectifier 35A is a robust through-hole rectifier designed for high-current AC to DC conversion in industrial and power electronics. Constructed with a glass-passivated die and molded plastic body, it ensures excellent thermal stability and surge endurance. Ideal for power supplies, inverters, UPS systems, and motor control circuits.CLICK HERE FOR DATASHEETFeatures:High current handling capability up to 35AExcellent surge tolerance of 400ALow forward voltage drop for efficient power conversionGlass-passivated junction with isolated epoxy case for heat dissipationSuitable for screw mounting and high-power PCB applicationsSpecifications:Average Forward Rectified Current (IF(AV)): 35A (TC = 50°C)Peak Repetitive Reverse Voltage (VRRM): 1000VWorking Peak Reverse Voltage (VRWM): 1000VDC Blocking Voltage (VDC): 1000VRMS Reverse Voltage (VR(RMS)): 700VPeak Forward Surge Current (IFSM): 400A (8.3ms half-sine wave)Forward Voltage (VF): 1.1V at IF = 17.5AReverse Current (IR) at 25°C: 5µAReverse Current (IR) at 125°C: 500µATypical Junction Capacitance (Cj): 300pFThermal Resistance Junction-to-Case (RθJC): 1.4°C/WOperating Junction Temperature (TJ): -65°C to +150°CStorage Temperature (TSTG): -65°C to +150°CPackage Includes:1 × GBPC3510 Bridge Rectifier 35A

INR 74 · In stock
