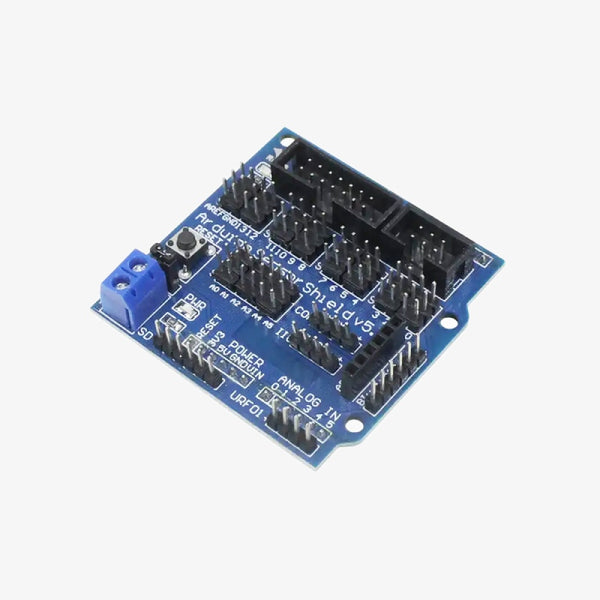

Sensor Shield V5 Expansion Board For Arduino Uno

The Sensor Shield V5 is a plug-and-play expansion board designed to simplify connecting sensors, servos, and other devices to your Arduino uno projects. Its modular design makes it perfect for prototyping and learning.FeaturesPlug-and-Play Ports: Easily connect sensors, servos, and modules without complex wiring.Standardized Interfaces: Includes 3-pin (GND, VCC, Signal) and 4-pin (I2C) connectors.Wide Compatibility: Works with Arduino Uno, Mega, and other similar boards.I2C and UART Support: Provides additional interfaces for communication with peripherals.Servo Headers: Dedicated connections for up to 16 servos.Reset Button: Integrated reset button for quick troubleshooting.SpecificationsVoltage Input: 5V (powered via Arduino or external source).Dimensions: Standard Arduino shield size for seamless stacking.Connectivity: Compatible with a wide range of sensors and modules.Applications: Robotics, IoT, automation, and educational projects.Pinout:Power Pins:VCC: Power supply (5V from Arduino)GND: GroundDigital Pins (0 to 13):These pins are used for connecting digital sensors and actuators. Digital pins on the shield map directly to the digital pins on the Arduino UNO.D0 - D13: Digital I/O pins for sensors, switches, or actuators.PWM Pins (3, 5, 6, 9, 10, 11):These pins are used for devices that require Pulse Width Modulation (PWM) signals, such as motors, LEDs, and servos.PWM Pins: D3, D5, D6, D9, D10, D11Analog Pins (A0 to A5):These pins are used for analog sensors like temperature or light sensors, providing an analog voltage signal that can be read by the Arduino.A0 - A5: Analog input pins.I2C Pins:SDA (A4): Serial Data Line for I2C communication.SCL (A5): Serial Clock Line for I2C communication.Serial Communication Pins (for Debugging):TX (D1): Transmit data for serial communication.RX (D0): Receive data for serial communication.Relay Pins (Relay Module Support):The shield come with relay pins for controlling relays directly.Relay Pins: D8, D7, D6Motor Driver Pins:The shield often includes dedicated pins for connecting motor drivers like the L298 or other motor control boards.Motor Pins: D12, D13

INR 85 · In stock
