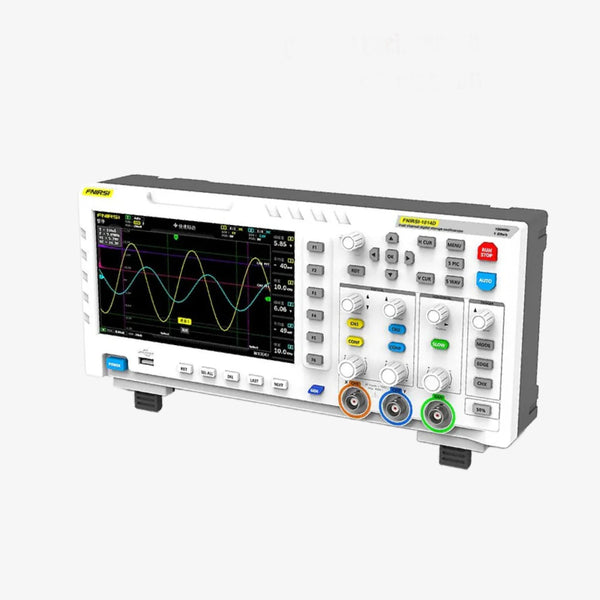

FNIRSI® 1014D 2-IN-1 Dual Channel 100MHz 1GS/s Digital Oscilloscope Signal Generator

FNIRSI® 1014D 2-IN-1 Dual Channel 100MHz 1GS/s Digital Oscilloscope Signal Generator is a professional desktop test instrument that combines a dual-channel digital oscilloscope and DDS signal generator in a single device. Featuring a 1GSa/s sampling rate, 100MHz bandwidth, 7-inch HD display, FFT analysis, waveform storage, and customizable signal generation, it is ideal for electronics development, circuit debugging, laboratory testing, maintenance, and educational applications.3FNIRSI® 1014D 2-IN-1 100MHz Digital Oscilloscope Signal Generator DatasheetFeatures:2-in-1 Oscilloscope and DDS Signal GeneratorDual Channel Input Design100MHz Analog Bandwidth per Channel1GSa/s Real-Time Sampling Rate7-Inch High-Resolution TFT LCD Display14 Built-In Signal Generator WaveformsCustom Signal Generation SupportLissajous Graphic Display FunctionFFT Spectrum Analysis FunctionOne-Button AUTO MeasurementWaveform Screenshot and Storage SupportUSB Export FunctionHigh Voltage Protection Design Specifications:ParameterValueBrandFNIRSI®Model1014DProduct TypeDigital Oscilloscope & Signal GeneratorChannels2Display Size7 InchDisplay Resolution800 × 480 PixelsMaterialABSPower Supply5V 2A / 3A / 4ADimensions310 × 145 × 70 mmOscilloscope Specifications:ParameterValueAnalog Bandwidth100MHz × 2Sampling Rate1GSa/sVertical Sensitivity50mV/div ~ 500V/divHorizontal Time Base50s/div ~ 10ns/divStorage Depth240KbitInput Resistance1MΩADC Resolution8-bitRise Time< 3nsCoupling ModeAC / DCTrigger ModesAuto / Normal / SingleTrigger EdgeRising Edge / Falling EdgeExternal Trigger Voltage0 ~ 40VMaximum Input Voltage (1X Probe)40VMaximum Input Voltage (10X Probe)400VFrequency Accuracy±0.01%Roll ModeSupportedOne-Button AUTOSupportedWaveform Storage1000 Screenshots + 1000 WaveformsUSB ExportSupportedScreenshot CaptureSupportedFFT AnalysisSupportedLissajous DisplaySupportedMeasurement Parameters12 TypesSignal Generator Specifications:ParameterValueOutput Channels1Output Waveforms14 Standard + 1 Custom WaveformOutput Amplitude2.5VppSine Wave Maximum Frequency10MHzOther Waveforms Maximum Frequency2MHzCustom Waveform Maximum Frequency1MHzFrequency Resolution1HzCustom Signal StorageUp to 1000 SignalsCapture OutputSupported Explore the FNIRSI Collection featuring advanced digital multimeters, oscilloscopes, signal generators, laser rangefinders, thermal cameras, USB testers, and precision electronic test equipment. Ideal for electronics engineers, technicians, makers, DIY enthusiasts, troubleshooting, circuit analysis, industrial maintenance, and professional measurement applications.Also Check These Products:-FNIRSI HRM-10 Battery Voltage Internal Resistance TesterFNIRSI LCR-P1 Multifunction Transistor Capacitor TesterFNIRSI LCR-ST1 Mini Smart Tweezer LCR SMD ESR TesterFNIRSI DMC-100 DC AC Current Voltage Digital Clamp MultimeterFNIRSI DMT-99 Intelligent Color Screen Digital MultiMeterPackage Includes:1 x FNIRSI® 1014D 2-IN-1 Dual Channel 100MHz 1GS/s Digital Oscilloscope Signal Generator
