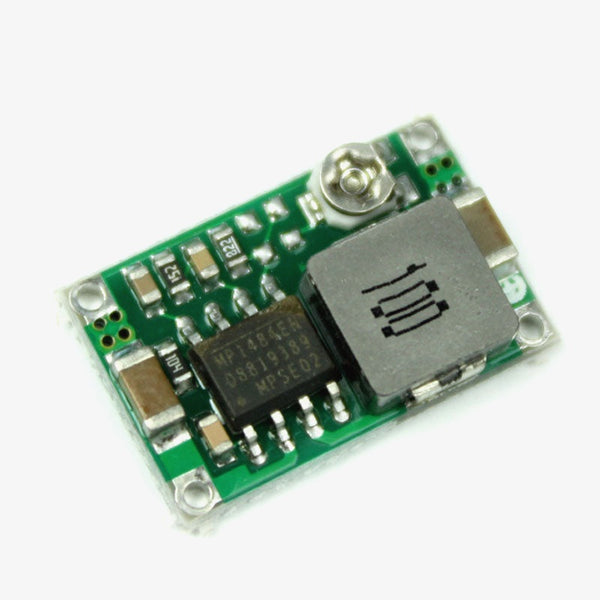

Mini 360 DC-DC Step Down Buck Converter Power Module

Mini 360 Step-Down Buck Converter Power Module that uses 4.75V-23V input and 1.0V to 17V output that is configurable using a simple onboard potentiometer. The continuous output current is 1.8A where 3A is the peak or surge current. It uses an integrally melded power inductor that is controlled by a 340kHz switching frequency. It is 95% efficient when driven by a 5V input source and set as 3.3V output at 200mA. This Module provides 30mV output ripple at no load with 0.5% load and 2.5% voltage regulation.Mini 360 DC-DC Buck Converter Pinout:Specification: -Regulator IC : MPS MP2307DNInput Voltage Range : 4.75 – 23VDCSelectable Output Voltage : 1.0 – 17VDCRated Current: 1.8A Continuous and 3A Peak CurrentMaximum conversion efficiency: 95% (5Vin, 3.3Vout ~200mA output)Switching Frequency: 340kHzNo-load output Ripple: 30mV peak to peakLoad Regulation: 0.5%Voltage Regulation : 2.5%Operational Temperature Range: -40 to +85°CMini 360 DC-DC Buck Converter Dimension and footprint:Example Projects on Mini 360 DC-DC Buck Converter:MIni360 ReviewPackage Contains1x 360 Step-Down Buck Converter Module

INR 26 · In stock
