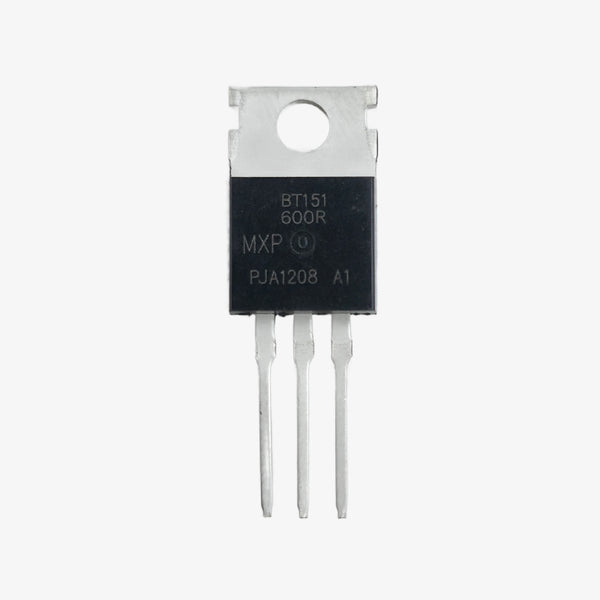

BT151 600V 12A SCR Thyristor - TO-220 DIP Package

The BT151-600V is a high-performance Silicon Controlled Rectifier (SCR) designed for AC switching, motor control, inrush current limiting, protection circuits, and industrial load regulation. Its strong dv/dt capability, low on-state voltage, and reliable triggering make it ideal for power tools, heaters, SMPS circuits, and general AC control applications.CLICK HERE FOR DATASHEETFeatures:Standard gate triggering designLow on-state voltage dropHigh surge current capabilityReliable glass-passivated junctionThermally efficient TO-220 packageSpecifications:Repetitive Peak Off-State Voltage (VDRM): 600VRMS On-State Current IT(RMS): 12AAverage On-State Current IT(AV): 7.6A (Tc = 111°C)Non-Repetitive Surge Current ITSM (1 cycle, 60Hz): 120APeak On-State Voltage VTM (ITM = 23A): ≤1.7VGate Trigger Current IGT: ≤15mAGate Trigger Voltage VGT: ≤1.5VHolding Current IH: ≤20mACritical dv/dt: ≥200V/µsThermal Resistance Junction-to-Case RθJC: 1.3°C/WOperating Junction Temperature (TJ): -40°C to +125°CPackage Includes:1 × BT151-600 600V 12A SCR Thyristor - TO-220 Package

INR 23 · In stock
