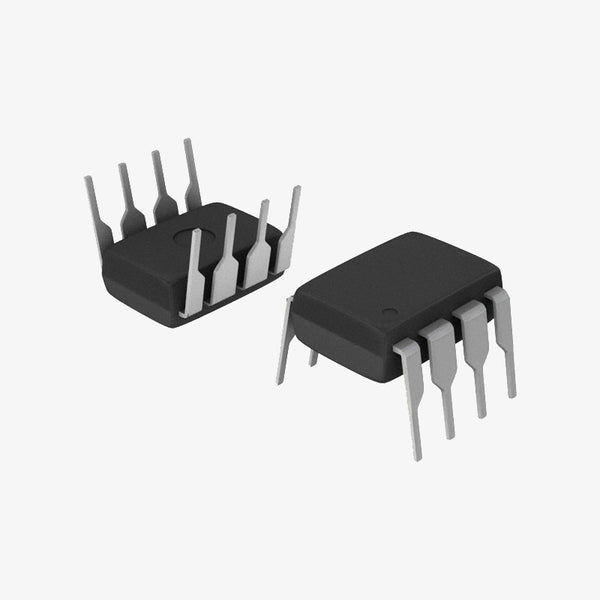

TLP250(F) Toshiba 2.5KV 1CH Optoisolated MOSFET Gate Driver IC - DIP-8 Package

TLP250(F) 2.5KV 1CH Optoisolated MOSFET Gate Driver IC - DIP-8 Package is a high-speed optically isolated gate driver designed for driving power MOSFETs and IGBTs in switching power supplies, motor drives, inverters, UPS systems, and industrial automation. Featuring 2.5kVrms isolation voltage, high peak output current, and fast switching performance, it provides reliable electrical isolation and efficient gate drive for high-voltage power applications.TLP250(F) 2.5KV 1CH Optoiso MOSFET Gate Driver - DIP-8 Package DatasheetFeatures:1-Channel Optoisolated Gate Driver2.5kVrms Isolation VoltageDesigned for MOSFET & IGBT Gate DrivingHigh-Speed Switching PerformanceHigh Peak Output Drive CurrentTTL/CMOS Compatible InputWide Supply Voltage RangeLow Propagation DelayHigh Noise ImmunityCompact DIP-8 PackageRoHS CompliantSpecifications:ParameterValueProduct TypeOptoisolated MOSFET Gate Driver ICPart NumberTLP250(F)PackageDIP-8Number of Channels1Isolation Voltage2.5kVrmsSupply Voltage10V ~ 35VPeak Output Current±1.5A (Typ.)Input LogicTTL / CMOS CompatiblePropagation Delay0.5µs (Typ.)Rise/Fall Time0.15µs (Typ.)Operating Temperature-20°C to +85°CRoHS ComplianceYesPin Configuration:PinNameDescription1ANODELED Anode Input2CATHODELED Cathode Input3NCNo Connection4GNDGround5VOGate Driver Output6VCCSupply Voltage7VEEOutput Ground8NCNo Connection Also Check These Out:AN7112 Audio Power Amplifier ICTDA2822M Amplifier ICHT12D (RF Decoder) ICPackage Includes:1 x TLP250(F) 2.5KV 1CH Optoisolated MOSFET Gate Driver IC - DIP-8 Package

INR 82 · In stock
