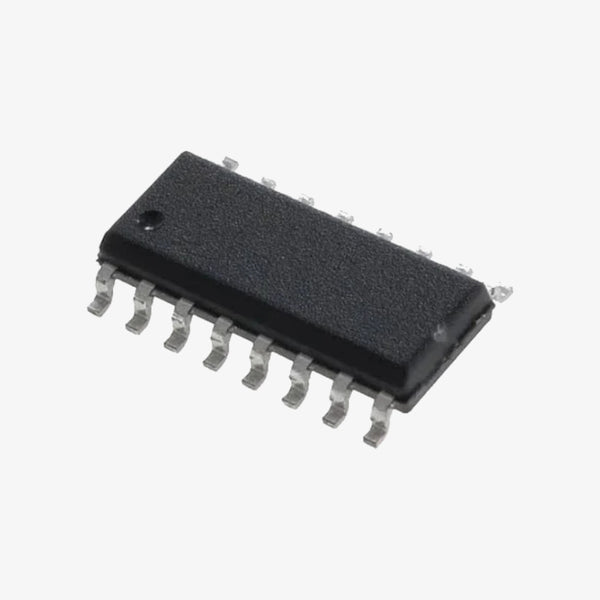

TM1650 4 Digit LED Display Common Cathode Driver IC - SOP-16 SMD Package

The TM1650 is an LED driver IC designed to control 4-digit 7-segment common cathode displays with ease. It integrates a key scan interface, LED driving, and I2C communication, reducing the complexity of circuit wiring. The TM1650 is ideal for display applications like digital clocks, counters, home appliances, and instrument panels where efficient control of LED digits is required.Housed in a compact SOP-16 SMD package, it enables space-saving PCB designs and reliable display control.Features of TM1650 LED Driver IC:Controls 4-digit 7-segment common cathode LED displaysBuilt-in key scan function for up to 16 keysSupports I2C two-wire communication interfaceAdjustable brightness levels with dimming controlLow current consumption with high driving capabilityReduces MCU I/O pin usage significantlyCompact SOP-16 SMD package for easy surface mountingSpecifications of TM1650 LED Driver IC:Model: TM1650Display Type: 4-digit 7-segment common cathodeInterface: I2C (2-wire serial communication)Operating Voltage: 5V DC (typical)Maximum Segment Output Current: 40mA per segmentBrightness Control: 8 levels (adjustable via software)Package Type: SOP-16 SMDOperating Temperature: -40°C to +85°CPackage Includes:1 × TM1650 LED Display Driver IC – SOP-16 SMD – 4 Digit Common Cathode

INR 12 · In stock
