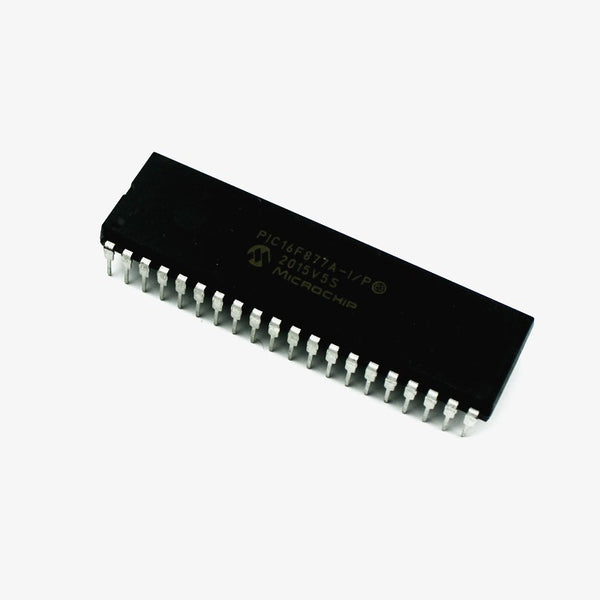

PIC16F877A 8-bit PIC Microcontroller

PIC16F877A is the most commonly used entry-level 8-bit PIC Microcontroller. It is a 40-pin 8-bit Microcontroller with 14kB of program memory. It does not have an internal oscillator but can work up to 20MHz with external oscillators. The controller has 8 ADC channels with 10-bit resolution and also supports PWM on 2 pins. It has two 8-bit timers and one 16-bit timer and supports communication protocols like UART, SPI, and IIC. You can also check other PIC microcontroller Components. PIC16F877A Features & SpecificationsCPU: 8-bit PICArchitecture: 8Program Memory Size (Kbytes): 14RAM (bytes): 368EEPROM/HEF: 256/HEFCPU Speed (MHz): 20Peripheral Pin select (PPS): NoInternal Oscillator: NoOf comparators: 2Of Operational Amplifier: 0Of ADC channels: 14Max ADC Resolution (bits): 10ADC with Computation: NoNumber of DAC Converter: 0Of 8-bit timers: 2Of 16-bit Timers: 1Of PWM outputs: 0Max PWM resolution: 10Of UART module: 1Of SPI Module: 1Of I2C module: 1Of USB Module: 0Minimum Operating Voltage (V): 2Maximum Operating Voltage (V): 5.5 Programming PIC MicrocontrollerTo program the PIC microcontroller you will need an IDE (Integrated Development Environment, a compiler, and an IPE (Integrated Programming Environment).IDE: MPLABX v3.35IPE: MPLAB IPE v3.35Compiler: XC8Microchip has given all these three software for free. They can be downloaded directly from their official page. Additional Resources:Getting started with PIC16F877APIC16F877A DatasheetHow to Program PIC16F877A

INR 234 · In stock
