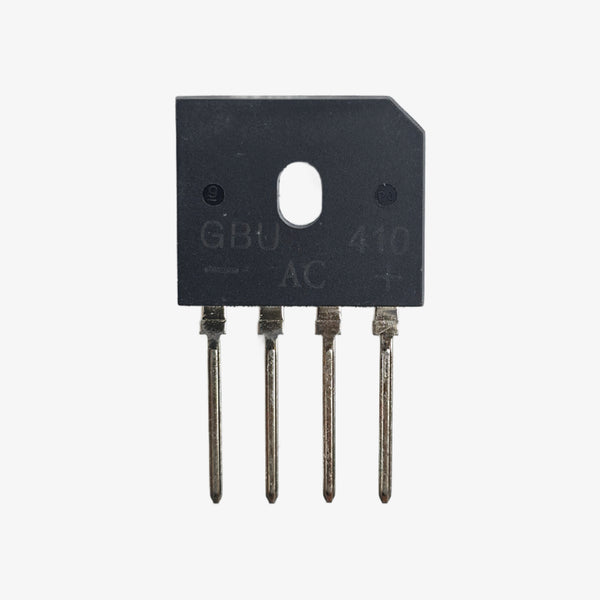

GBU410 4A 1000V Single Phase Bridge Rectifier Module - Inline 4-Pin Package

The GBU410 Bridge Rectifier 4A is a high-efficiency through-hole rectifier designed for reliable AC to DC conversion in power supplies and industrial equipment. Its molded plastic body and glass-passivated chip ensure durability and consistent performance under high surge currents. Ideal for chargers, adapters, and motor control circuits.CLICK HERE FOR DATASHEETFeatures:Reliable molded plastic construction with glass passivated chipLow forward voltage drop for reduced power lossHigh surge current capability up to 120AFlame-retardant epoxy rated UL 94V-0Leads solderable per MIL-STD-202 Method 208Specifications:Average Forward Current (IF(AV)): 4.0APeak Repetitive Reverse Voltage (VRRM): 1000VPeak Forward Surge Current (IFSM): 120A (8.3ms single half sine wave)Instantaneous Forward Voltage (VF): 1.05V at IF = 2.0AReverse Current (IR) at 25°C: 10µAThermal Resistance Junction to Case (RθJC): 5.5°C/WThermal Resistance Junction to Ambient (RθJA): 23°C/WDielectric Strength (Vdis): 2kVOperating Junction Temperature (TJ): -55°C to +150°CStorage Temperature Range (TSTG): -55°C to +150°CPackage Includes:1 × GBU410 4A 1000V Single Phase Bridge Rectifier Module - Inline 4-Pin Package

INR 25 · In stock
