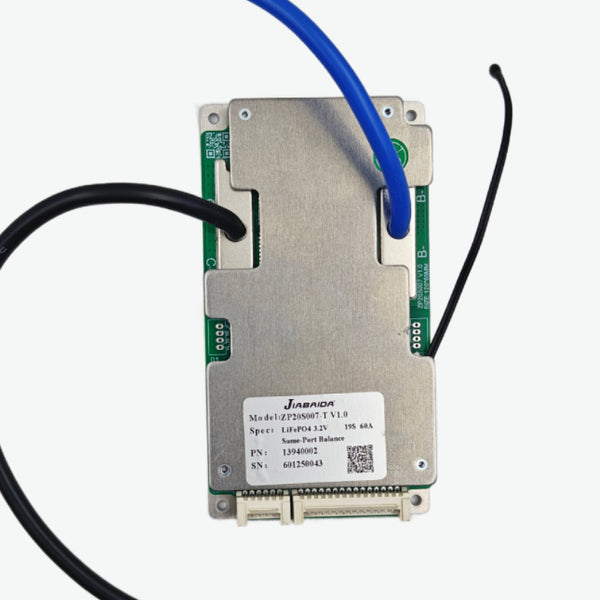

Jiabaida (JBD) LiFePo4 19S 60.8V 60A Battery Management System - BMS Protection Board

Jiabaida (JBD) LiFePo4 19S 60.8V 60A is a high-efficiency Battery Management System (BMS) designed with TP20S001 hardware, tailored for 19-cell LiFePo4 battery packs. This BMS offers intelligent passive balancing, advanced safety features, and a durable build suitable for high-power systems such as electric bikes, energy storage, and power backup units. It protects the battery pack from overcharging, over-discharging, short circuits, and excessive current, ensuring long battery life and stable performance.Jiabaida (JBD) LiFePo4 19S 60A BMS Features:60A continuous discharge current for high-load applicationsIntelligent passive balancing for cell voltage stabilityIntegrated protection: over-voltage, under-voltage, short circuit, and overcurrentTP20S001 hardware ensures reliable operation and precision controlSuitable for large LiFePo4 battery-powered systemsJiabaida (JBD) LiFePo4 19S 60A BMS Specification:SpecificationValueModelTP20S001Supported Cells19S (LiFePo4)Nominal Voltage (V)60.8VCharge Voltage (V)69.35VCharge Current (A)30AContinuous Discharge Current (A)60ABalance Current (mA)30 ±5Overcharge Detect Voltage (V)3.75 ±0.05Overcharge Release Voltage (V)3.55 ±0.05Over Discharge Detect Voltage (V)2.20 ±0.1Over Discharge Release Voltage (V)2.50 ±0.1Operating Temperature (°C)-20 to 70Dimensions (mm)128 x 63 x 12 Package Includes:1 x Jiabaida (JBD) LiFePo4 19S 60A Battery Management System - BMS Protection Board

Check price on store · Out of stock
