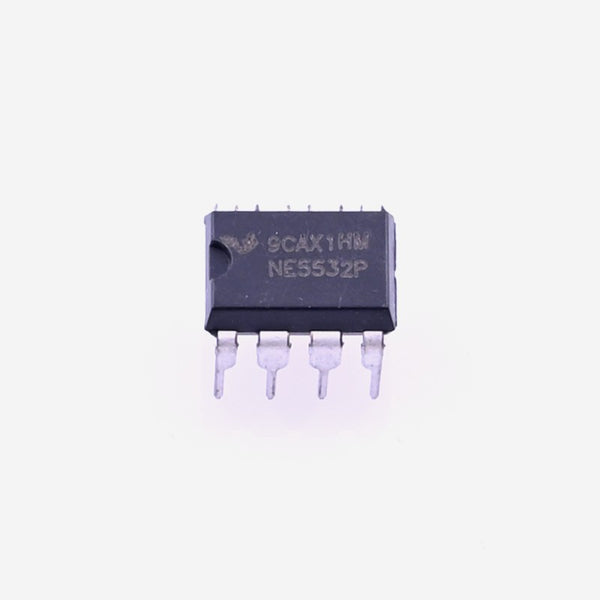

NE5532 - Low Noise Dual Op-Amp IC - DIP-8 Package

NE5532 is a low noise dual op-amp IC i.e., the output of these devices will have lower distortion values. It has specified maximum limits for equivalent input noise voltage. The equivalent Input Noise voltage for this Op-Amp is around 5nV/Hz at 1kHz. It has high output-drive capability, high unity-gain and maximum-output-swing bandwidths, low distortion and high slew rate.NE5532 IC has a maximum operating voltage of 22V. The Op-amp has a CMRR value of 100 dB with a high gain of 100V/mv. The Slew Rate is 9V/us. This amplifier features input-protection diodes, and output short-circuit protection.The NE5532 is a high-performance operational amplifier combining excellent dc and ac characteristics. These operational amplifiers are compensated internally for unity-gain operation.NE5532 pinout:NE5532 SpecificationsSpecifications:Equivalent Input Noise Voltage: 5 nV/√Hz Typ at 1 kHzUnity-Gain Bandwidth: 10 MHz TypCommon-Mode Rejection Ratio: 100 dB TypHigh DC Voltage Gain: 100 V/mV TypPeak-to-Peak Output Voltage Swing 26 V Typ with VCC± = ±15 V and RL =600ΩHigh Slew Rate: 9 V/µs TypNE5532 Applications:AV ReceiversDVD Recorders and PlayersPro Audio MixersNetbooksEmbedded PCs NE5532 Dimension and footprint: Package Contains1x NE5532 Op Amp IC

INR 14 · In stock
