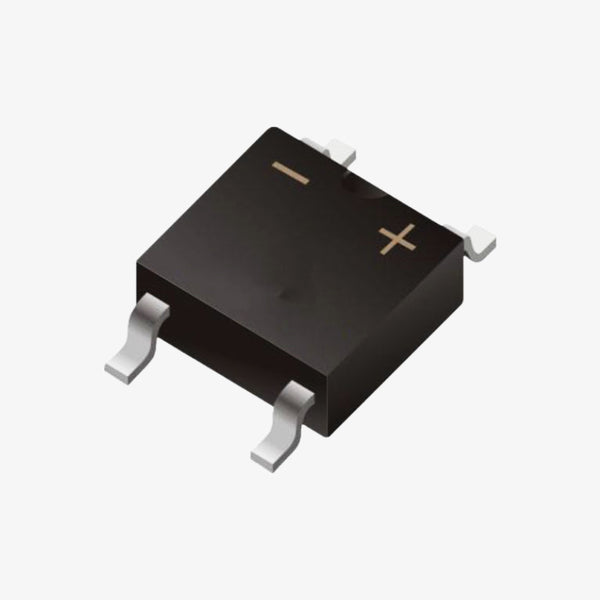

ABS10 1A 1000V Single Phase Bridge Rectifier Module - 4-Pin SMD Package (Pack of 10)

The ABS10 Bridge Rectifier is a compact SMD rectifier designed for efficient AC to DC conversion. It features a glass-passivated junction and low reverse leakage, ensuring stable performance in compact PCB layouts. Ideal for power adapters, LED drivers, and general rectification circuits.CLICK HERE FOR DATASHEETFeatures:Glass passivated junction for improved reliabilityLow reverse leakage and forward voltage dropHigh forward surge current capabilitySMD molded ABS package with polarity markingCompliant with RoHS standardsSpecifications:Average Forward Current (IF(AV)): 0.8A / 1.0APeak Repetitive Reverse Voltage (VRRM): 1000VDC Blocking Voltage (VDC): 1000VRMS Voltage (VR(RMS)): 700VPeak Forward Surge Current (IFSM): 50A (8.3ms single half sine wave)Instantaneous Forward Voltage (VF): 1.0V at IF = 0.5AReverse Current (IR) at 25°C: 5µAReverse Current (IR) at 125°C: 500µA Thermal Resistance Junction to Ambient (RθJA): 80°C/W / 62.5°C/WThermal Resistance Junction to Lead (RθJL): 25°C/WOperating Junction Temperature (TJ): -55°C to +150°CStorage Temperature Range (TSTG): -55°C to +150°CPackage Includes:10 × ABS10 Bridge Rectifier - SMD Package

INR 30 · In stock
