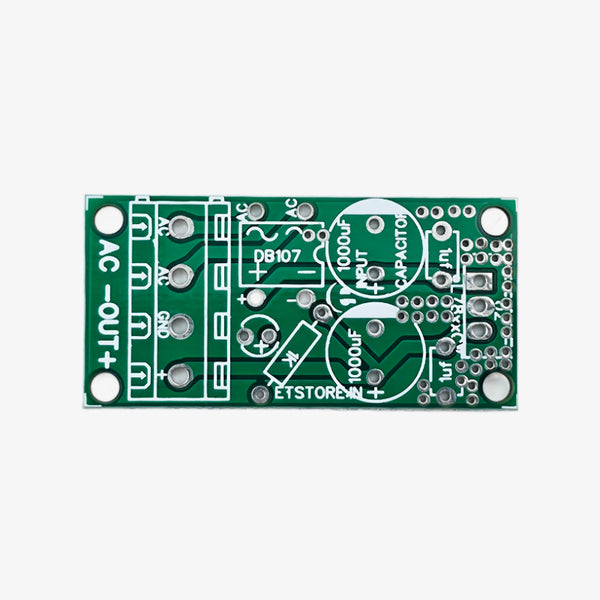

DB107 and 78XX Regulator Bridge Rectifier Module PCB

The PCB For DB107 With 78XX Regulator Bridge Rectifier Module is designed as a compact rectification and regulation module using the DB107 bridge and 78XX series regulator. It provides smooth DC output and simplifies power conditioning for embedded and general electronics applications.Features:Supports DB107 bridge rectifier integrationProvides clean routing for 78XX voltage regulatorsEnsures stable DC power conversionCompact layout suitable for regulated supply modulesSpecifications:Compatibility: DB107 bridge rectifier Input Type: AC input for rectificationOutput Type: Regulated DC (depending on 78XX variant)Board Type: Rectifier & Regulator ModulePCB Material: High-quality FR4PCB Thickness: 1.6mmComponent Type: Through-hole componentsResistor Values: 1kΩ (for 12V), 3.3kΩ (for 12–25V)Capacitor: Use electrolytic capacitors above your working voltageComponent: Bare PCB (no components pre-assembled)Package Includes:1 × PCB For DB107 With 78XX Regulator Bridge Rectifier Module

INR 16 · Out of stock
