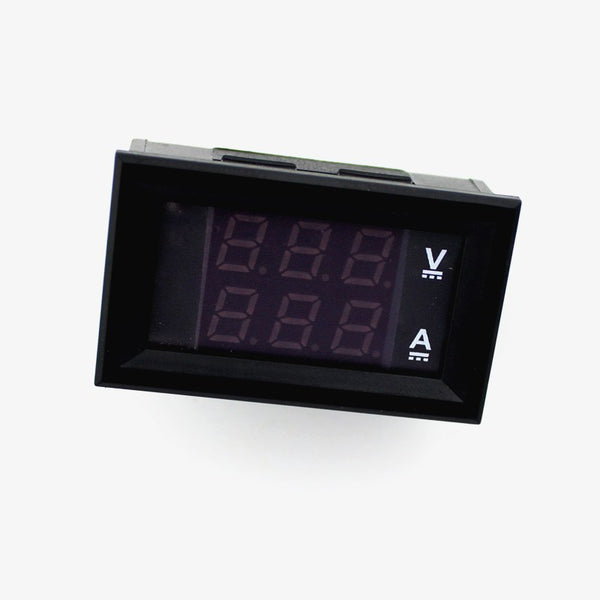

100V 10A Dual LED Voltmeter Ammeter Monitor Panel

This module is a simplistic solution that can be used for DC Volt and Amp meter related operations. It has upper and lower groups of LED’s to display measured Voltage and current data where the measuring Voltage range is 0V-100V DC and the Current reading range is 0A to 10A. Since this module comes with an internal sense resistor, no additional resistor is required to be used for current sensing operations.It can support a wide range of operating voltages from 4.5V to 30VDC. Do not use input voltage more than 30VDC.Specifications and Features of Volt meter and AMP meter:Voltage measuring range: DC 0-100V,Current measuring range: DC 0-10AWorking voltage 4.5 to 30V DC.Input current: Less than 20mADual 4 bit 0.28″ clear LED display - RED for Voltage and Sky Blue for Current DisplayDisplay Resolution: 0.1V, 0.01AMeasurement accuracy: ± 1% Dimension:Applications:Voltage and Current Measurement in different Load applicationsBench Power supplyDifferent type of SMPS where display is requiredVoltmeter applicationsMotor Driving or Electronic CarE Vehicle Charging displayPackage Contains:1x 100V 10A Digital Volt Amp meter1x High current Wire for Voltage Measurement with 2 Pin JST connector on one side1x 3 pin JST connector for Power input and Voltage measurement.Example Projects:Digital Volt Amp meter Review Additional Resources:Digital Volt-Amp meter Datasheet

INR 116 · Out of stock
