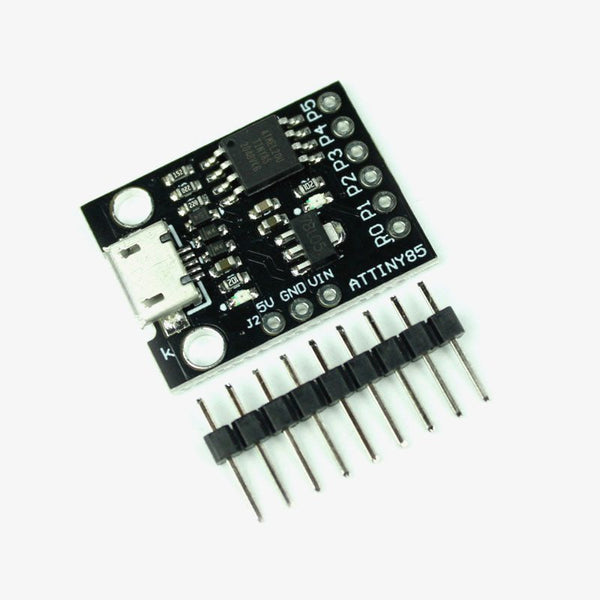

ATtiny85 Mini USB Development Board

Development boards are essential in embedded electronics and here we present the small ATtiny85 development board. The ATtiny85 is a compact Development Board from the Arduino community. It is based on the 8-pin ATTiny85 ATMEL Microcontroller and has 6 Digital pins, out of which 4 pins are ADC compatible. It also has 3 PWM outputs and supports SPI, I2C, and USART communication. The Flash memory size is about 8K.It operates on +5V and also has an onboard voltage regulator which can take input voltage up to 12V. The board comes with a preloaded bootloader with blink sketch and can be easily programmed using the Arduino IDE. It features a micro USB port that can be used for data transfer and power-related inputs. The USB line is fully protected using the TVS diodes.AtTiny Development Board pinout: AtTiny Development Board Features and Specification:Specification:High Performance, Low Power AVR® 8-Bit MicrocontrollerNon-volatile Program and Data Memories8K Bytes of In-System Programmable Program Memory FlashEndurance: 10,000 Write/Erase Cycles512 Bytes In-System Programmable EEPROM512 Bytes Internal SRAMPeripheral FeaturesTwo High-Frequency PWM Outputs with Separate Output Compare RegistersUSI – Universal Serial Interface (12C, SPI, 1-wire) with Start Condition Detector10-bit ADC4 Single Ended ChannelsTwo Differential ADC Channel Pairs with Programmable Gain (1x, 20x)Speed Grade0 – 10 MHz @ 2.7 – 5.5V, 0 – 20 MHz @ 4.5 – 5.5VIndustrial Temperature RangeLow Power ConsumptionActive Mode:1 MHz, 1.8V: 300 µAAtTiny Development Board Applications:Programming SystemMotor ControlLogic DevicesData processingData logging Package Contains1x AtTiny Development Board

INR 198 · Out of stock
