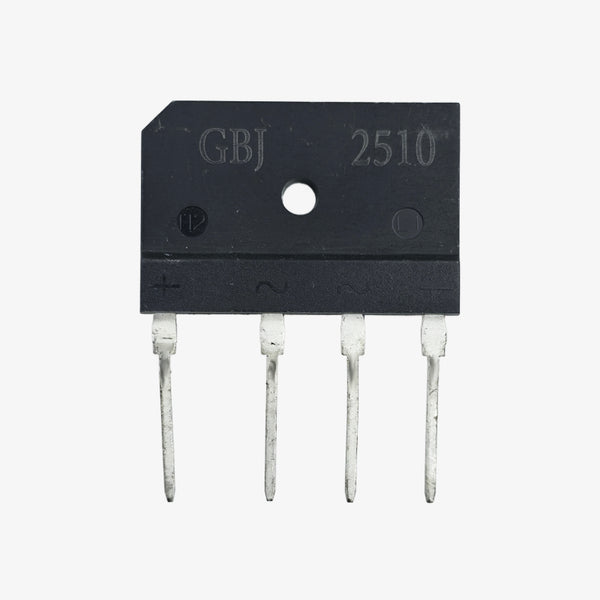

GBJ2510 25A 1000V Single Phase Bridge Rectifier Module - Inline 4-Pin Package

The GBJ2510 Bridge Rectifier 25A is a robust through-hole rectifier designed for high-current AC to DC conversion in industrial and power electronics. Constructed with a glass-passivated die and molded UL 94V-0 plastic body, it ensures superior thermal stability and surge endurance. Ideal for power supplies, inverters, UPS systems, and motor control circuits.Features:High average rectified current of 25AExcellent surge current handling up to 350ALow forward voltage drop for efficient rectificationUL-recognized molded plastic case with flame-retardant ratingSuitable for PCB mounting with built-in stand-offs and reliable lead solderingSpecifications:Average Forward Rectified Current (IF(AV)): 25A (TC = 100°C)Peak Repetitive Reverse Voltage (VRRM): 1000VDC Blocking Voltage (VDC): 1000VRMS Reverse Voltage (VR(RMS)): 700VPeak Forward Surge Current (IFSM): 350A (8.3ms half-sine wave)Forward Voltage (VF): 1.1V at IF = 12.5A DCReverse Current (IR) at 25°C: 10µAReverse Current (IR) at 125°C: 500µAThermal Resistance Junction-to-Case (RθJC): 1.0°C/WOperating Junction Temperature (TJ): -55°C to +150°CStorage Temperature (TSTG): -55°C to +150°CPackage Includes:1 × GBJ2510 25A 1000V Single Phase Bridge Rectifier Module - Inline 4-Pin Package

INR 45 · In stock
