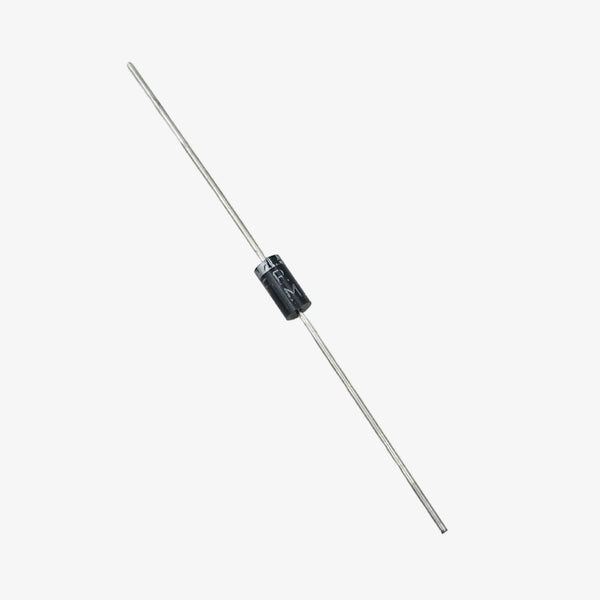

RL157 General Purpose Silicon Rectifier Diode 1.5A

The RL157 General Purpose Silicon Rectifier Diode 1.5A is built for stable AC to DC rectification in standard power applications. Its molded structure ensures dependable operation across varied loads. Ideal for chargers, adapters, and low-frequency rectifier circuits.CLICK HERE FOR DATASHEETFeatures:Supports high-current rectification with reliable overload enduranceDelivers stable performance with low forward voltage characteristicsBuilt with a molded DO-15 body offering strong thermal and mechanical stabilityDesigned with flame-retardant UL 94V-0 epoxy for enhanced safetySpecifications:Maximum Peak Reverse Voltage (VRRM): 1000 VMaximum RMS Voltage: 700 VMaximum DC Blocking Voltage: 1000 VAverage Forward Rectified Current (IAV): 1.5 APeak Forward Surge Current (IFSM): 50 AInstantaneous Forward Voltage at 1.5A (VF): 1.0 VDC Reverse Current at 25°C (IR): 5 µADC Reverse Current at 100°C (IR): 50 µATypical Junction Capacitance: 20 pFTypical Thermal Resistance (RθJA): 50 °C/WOperating Temperature Range: -65°C to +150°CPackage Type: DO-15, axial leadsPackage Size: 3000pcsPackage Includes:1 × RL157 General Purpose Silicon Rectifier Diode 1.5A

INR 3 · In stock
