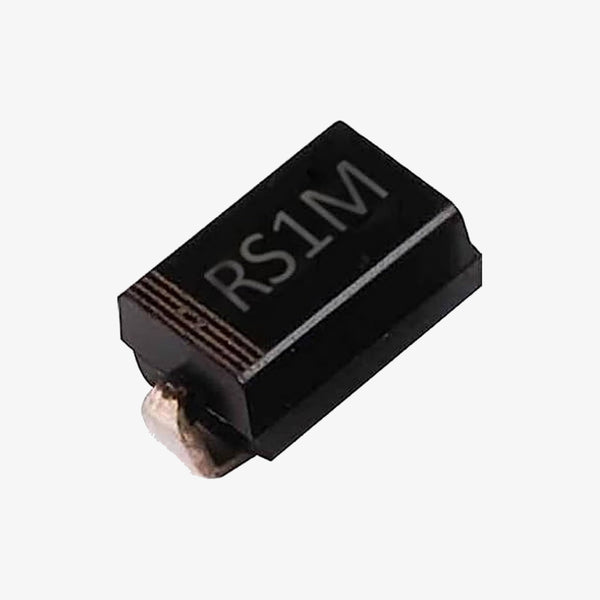

RS1M Fast Recovery Rectifier Diode - (SMA) SMD Package (Pack of 10)

The RS1M Fast Recovery Rectifier - (SMA) SMD Package is designed for efficient AC to DC rectification in compact surface-mount applications. Its low-profile SMA package and glass passivated chip junction ensure reliable performance with fast switching and high surge tolerance. Ideal for power supplies, inverters, and automated assembly circuits.CLICK HERE FOR DATASHEETFeatures:Low-profile SMA package for easy automated placementGlass passivated chip junction for durabilityFast switching for high-efficiency rectificationHigh forward surge capability with high-temperature soldering toleranceSpecifications:Maximum Repetitive Peak Reverse Voltage (VRRM): 1000 VMaximum RMS Voltage (VRMS): 700 VMaximum DC Blocking Voltage (VDC): 1000 VMaximum Average Forward Rectified Current (IF(AV)): 1.0 APeak Forward Surge Current (IFSM): 30 AMaximum Instantaneous Forward Voltage (VF) at 1 A: 1.3 VMaximum Reverse Current (IR) at 25°C: 5 µAMaximum Reverse Current (IR) at 125°C: 50 µAReverse Recovery Time (trr): 500 nsTypical Junction Capacitance (CJ): 8 pFOperating Temperature Range (TJ, TSTG): -55°C to +150°CPackage Includes:10 pcs × RS1M Fast Recovery Rectifier Diode - (SMA) SMD Package

INR 12 · In stock
