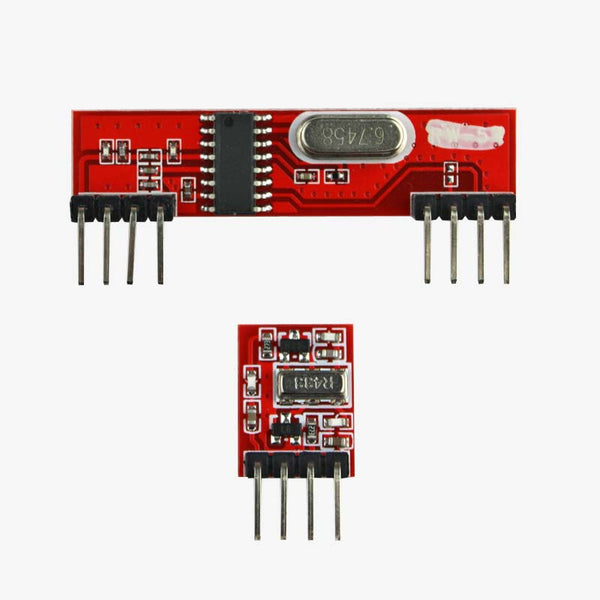

433MHz RF Transmitter and Receiver Wireless Module

This hybrid RF Transceiver Module provides a complete RF transmitter and receiver module solution which can be used to transmit data at up to 3KHz from any standard CMOS/TTL source.The transmitter module is very simple to operate and offers low current consumption (typical. 11mA). Data can be supplied directly from a microprocessor or encoding device, thus keeping the component count down and ensuring a low hardware cost.The RX – ASK is an ASK Hybrid receiver module. The RF Transmitter Receiver Module is an effective low-cost solution for using 433 MHz. The TX-ASK is an ASK hybrid transmitter module. TX-ASK is designed by the saw resonator, with an effective low cost, small size and simple to use for designing.433MHz RF Transmitter and Receiver Wireless Module Specifications:Range in open space(Standard Conditions) : 100 MetersRX Receiver Frequency : 433 MHzRX Typical Sensitivity : 105 DbmRX Supply Current : 3.5 mARX IF Frequency : 1MHzRX Operating Voltage : 5VTX Frequency Range : 433.92 MHzTX Supply Voltage : 3V ~ 6VTX Out Put Power : 4 ~ 12 Dbm 433MHz RF Transmitter and Receiver Wireless Module Features:Low Power ConsumptionEasy For RF based ApplicationComplete Radio TransmitterTransmit Range Up To 50mCMOS / TTL InputNo Adjustable ComponentsVery Stable Operating FrequencyLow Current Consumption (Typ 11mA)Wide Operating VoltageASK Modulation Applications:Remote ControlsAutomation SystemWireless Security SystemSensor ReportingCar Security SystemRemote Keyless Entry Package Includes:1 x 433MHz RF Transmitter and Receiver Wireless Module

INR 112 · Out of stock
