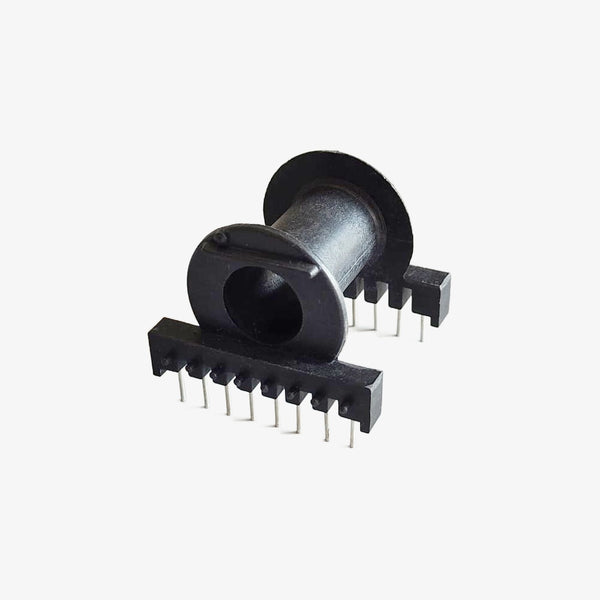

ETD44 Transformer Horizontal Bobbin 16 Pin

The ETD44 Transformer Horizontal Bobbin (16 Pin) is a robust component typically used in high-power and high-frequency applications, such as Switched Mode Power Supplies (SMPS), inverters, and converters. It supports larger power capacities due to its size and pin count. Here’s a detailed description of its features and specifications.Features:Core Type: ETD44Pin Count: 16 pins (dual row configuration)Bobbin Type: Horizontal mounting, ideal for designs that require a low profile on the PCBMaterial: Constructed from high-quality, heat-resistant plastic, often with a UL94-V0 flame retardant ratingApplications: Designed for use in high-frequency transformers for SMPS, inverters, and converters, where high efficiency and compact design are criticalWinding Capability: The bobbin is designed to accommodate multiple windings, making it suitable for transformers with complex primary and secondary winding arrangementsSpecifications:Pin Pitch: Standard 5 mm spacing between pins (varies slightly depending on the manufacturer)Dimensions: Standard ETD44 core size with a wide window area for winding, optimized for high power densityWinding Area: Large window size to support high-turn windings and thicker wires, ideal for handling higher power levels and maintaining efficiency in high-frequency applicationsMounting: Horizontal bobbin, designed for through-hole mounting, offering a low-profile transformer setup on the PCBThermal Management: Good thermal resistance, suitable for managing the heat generated in high-power, high-frequency applicationsCompatibility: Specifically designed for use with ETD44 cores, known for their ability to handle high energy density while maintaining efficiency

INR 39 · In stock
