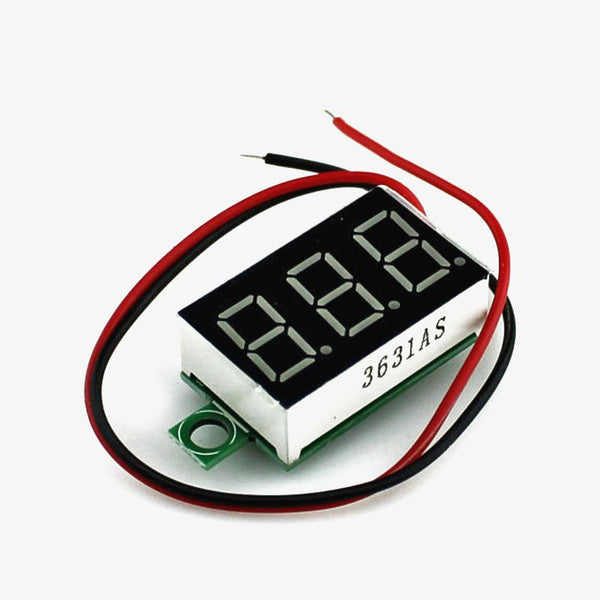

0.36 Inch DC Voltmeter (4.5V - 30V)

In many projects you just need a tiny, simple display to provide Voltage information but that becomes a very costly solution if it is done using a microcontroller and small displays. Quartz component presenting this tiny yet compact digital voltmeter that could provide in the Voltage information with a seven segment based red LED Display. This 0.36inch display is capable of providing a 4.50V-30V voltage display while using only Two Wires. Its application is as simple as plug and play. This Voltmeter provides best measurement accuracy by moving the decimal point position automatically. To get the best output, please use this Voltmeter 4.50V - 30V range. It doesn't need any additional power source externally for its operations. Pinouts: Specifications and Features:Small and lightweight Voltmeter module - 5gm only.Display color: Red.Best operates in the working voltage range of 4.5V to 24VAccuracy : 0.1 VWire : 2Potentiometer available for adjusting the displayed voltageDisplay Turn on Voltage (V): 3VMeasurable Voltage Range : 4.5V to 30VCurrent Consumption (mA) : 10mA(min), 23mA(max).Refresh Speed (ms): 200 (one time)Operating Temperature (C) : -10 to 60Dimension:Application:Voltage Measurement in different applicationsBench Power supply Voltage NotifierDifferent type of CV SMPS where Voltage display is requiredVoltmeter applications in DIYE Vehicle Battery Voltage displayPackage Contains:1x 0.36 Inch 2 Wire DC Voltmeter (0-30V) with Wire

INR 59 · In stock
