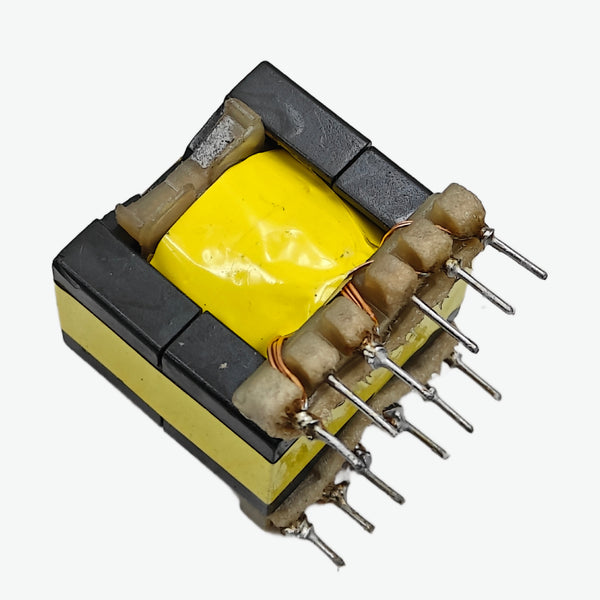

PQ3230 150W High-Frequency SMPS Transformer - 12.6V Output (OB2269CP IC Compatible)

PQ3230 150W High-Frequency SMPS Transformer – 12.6V Output (OB2269CP IC Compatible) is a high-efficiency ferrite core transformer designed for switch mode power supply applications, featuring a MnZn ferrite PQ3230 core, 150W power rating, optimized primary and secondary windings for 12.6V output, and compatibility with OB2269CP-based SMPS designs, making it suitable for high-frequency power conversion in industrial and consumer electronics.Features:150W high-frequency SMPS transformerDesigned for 12.6V output applicationsMnZn ferrite core for efficient magnetic performanceOptimized multi-strand copper windingsCompatible with OB2269CP IC based designsWide operating frequency rangeThrough-hole mounting with 8-pin configurationSpecifications:Product Type: SMPS TransformerModel: PQ3230Core Material: MnZn FerritePhase: SinglePower Rating: 150 WMaximum Secondary Current: 10 APrimary Inductance: 420 mHPrimary Turns: 38 Turns (3 × 0.5 mm wire)Primary Bias Turns: 8 Turns (2 × 0.3 mm wire)Secondary Turns: 5 Turns (10 × 0.5 mm wire)Secondary Bias Turns: 8 Turns (2 × 0.3 mm wire)Working Frequency: 20 kHz to 500 kHzWinding Material: CopperNumber of Pins: 8Mounting Type: Through HoleDimensions: 35 × 32 × 31 mmOperating Temperature: -15°C to +105°CApplications: SMPS power supplies, industrial power converters, battery chargers, inverter circuits, high-frequency power systemsPackage Includes:1 × PQ3230 150W High-Frequency SMPS Transformer - 12.6V Output (OB2269CP IC Compatible)

INR 195 · In stock
