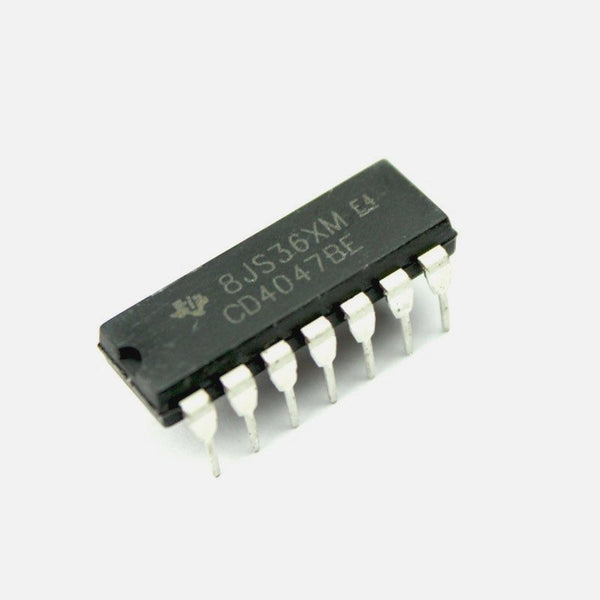

CD4047/CF4047 - Monostable/Astable Multivibrator IC - DIP-14 Package

The CD4047 is a high voltage multivibrator IC, that can operate in both Monostable and Astable mode. The IC requires an external resistor and capacitor to set the width of output pulse in monostable mode and the frequency of output pulse in Astable Mode. The monostable mode has positive and negative edge trigger with programmable pulse width. The Astable mode provides good frequency stability at 50% duty cycle. The CD4047 IC can operate on 5V, 10V, 15V or even at 20V. The output of the IC always comes in TTL which makes it easy to work with other TTL devices and microcontrollers. The IC is commonly used in frequency discriminators, timing circuits ,time-delay applications ,envelope detection, frequency multiplication and division.Product Description of CD4047 - Monostable/Astable Multivibrator ICPIN DESCRIPTIONSAlternative to the CD4047 ICs, are the 555 Timer and the LM556/ dual timer IC.Features of CD4047 - Monostable/Astable Multivibrator ICWide Supply Voltage : 3.0V to 15VHigh Noise ImmunityBuffered inputsRequires only one external Resistor and CapacitorOffers both monostable and astable mode operationsLow power consumptionMonostable Features : Duty-cycle approaches 100%, Retrigger option for pulse width expansion, positive/ negative edge triggerAstable Features : 50% duty-cycle, Oscillator output available, good astable frequency stabilityPackage Contents1× CD4047 - Monostable/Astable Multivibrator IC - DIP-14 Package

INR 18 · Out of stock
