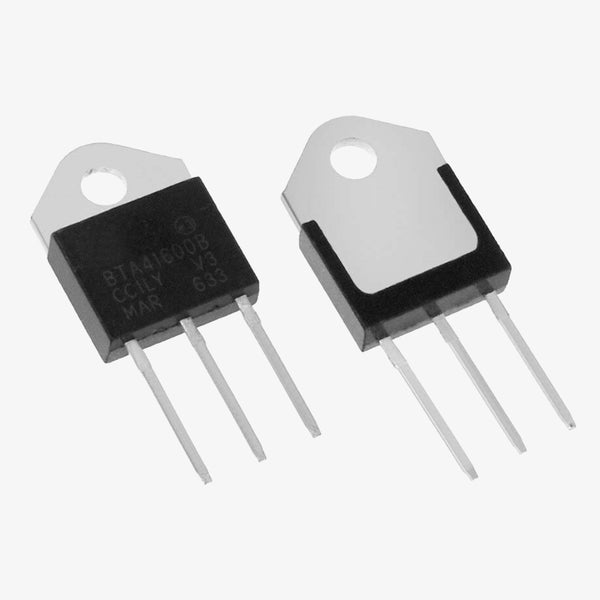

BTA41-600B 600V 41A Triac - TO-220AB Package

The BTA41-600B is a high‑current, high‑voltage bidirectional Triac designed for AC switching and phase control applications. Rated for 600V peak repetitive off‑state voltage and 41A RMS on‑state current, it is ideal for motor speed controls, light dimmers, heater controls, and solid‑state relays. The device features a built‑in, electrically isolated mounting tab in the TO‑220AB package, ensuring safe and compact installation without additional insulation.Features of BTA41‑600B Triac:Bidirectional AC switch for full‑wave controlHigh voltage rating: 600V VDRM/VRRMHigh current capability: 41A IT(RMS)Isolated mounting tab for easy heatsinkingHigh commutation toleranceSuitable for inductive and resistive loadsTO‑220AB through‑hole packageSpecifications of BTA41‑600B Triac:Model: BTA41‑600BType: Bidirectional TriacPeak Repetitive Off‑State Voltage: 600VRMS On‑State Current: 41AGate Trigger Current: 50–100 mAHolding Current: 50 mA (typical)Surge Current (ITSM): 320A (8.3 ms sine)dv/dt Critical: 100 V/µsPackage: TO‑220AB – Through HoleOperating Temperature Range: –40 °C to +125 °CPackage Includes:1 × BTA41‑600B Triac – 600V 41A – TO‑220AB Package

INR 38 · In stock
