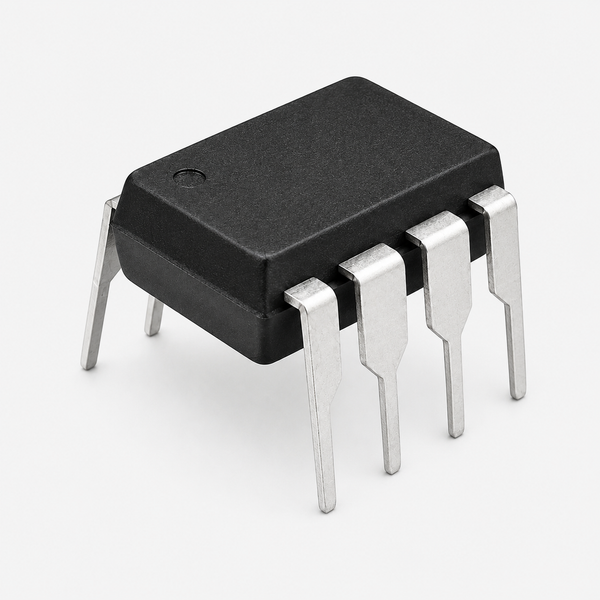

6N137 High Speed Optocoupler IC - DIP-8 Package

6N137 High Speed Optocoupler IC - DIP-8 Package is a high-speed optically isolated logic interface IC designed for fast digital signal transmission while providing excellent electrical isolation between input and output circuits. It features a high-speed photodetector with a logic gate output, making it ideal for microcontroller interfacing, industrial automation, communication systems, switching power supplies, and digital isolation applications. The DIP-8 package allows for easy through-hole mounting and prototyping.Features:High-Speed OptocouplerLogic Gate OutputHigh Data Transmission RateExcellent Electrical IsolationLow Power ConsumptionHigh Common Mode Noise ImmunityTTL and CMOS Compatible OutputOpen Collector OutputWide Operating Voltage RangeFast Switching PerformanceReliable Signal IsolationDIP-8 Through-Hole PackageSuitable for Microcontroller InterfacingIdeal for Industrial Automation & Communication SystemsRoHS CompliantSpecifications:ParameterValueProduct TypeHigh-Speed Optocoupler ICModel6N137PackageDIP-8Isolation Voltage5000VrmsData RateUp to 1MbpsOutput TypeOpen Collector Logic OutputInput TypeInfrared LEDSupply Voltage (VCC)4.5V to 5.5VForward LED Current10mA (Typical)Propagation Delay0.5µs (Typical)Common Mode Rejection (CMR)10kV/µs (Typical)Operating Temperature-40°C to +85°CMounting TypeThrough HoleApplicationsDigital Signal Isolation, Microcontroller Interfaces, PLCs, Industrial Control, SMPS Feedback, Communication SystemsRoHS ComplianceYesPin Configuration:PinFunction1Anode2Cathode3NC4GND5VO (Output)6VCC7VE (Output Enable)8NCAlso Check These Out:AN7112 Audio Power Amplifier ICTDA2822M Amplifier ICHT12D (RF Decoder) ICPackage Includes:1 x 6N137 High Speed Optocoupler IC - DIP-8 Package

INR 33 · In stock
