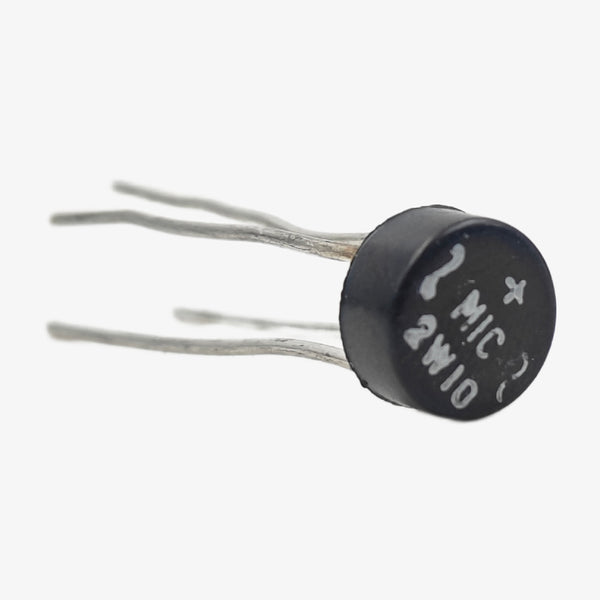

W10 1.5A 1000V Single Phase Bridge Rectifier Module - 4 Pin Lead Round Package

The W10 Single Phase Bridge Rectifier Module is a compact and reliable power conversion component designed for efficient AC to DC rectification in electronic power systems. Rated for 1.5A forward current and 1000V reverse voltage, this bridge rectifier is ideal for use in power supplies, battery chargers, adapters, inverters, and industrial control circuits.CLICK HERE FOR DATASHEETFeatures:UL-recognized construction for quality assuranceReliable, low-cost molded plastic designHigh surge current capacity up to 40AIdeal for PCB mounting applicationsHigh-temperature soldering endurance up to 260°C for 10 secondsSpecifications:Average Forward Rectified Current (IF(AV)): 1.5APeak Repetitive Reverse Voltage (VRRM): 1000VDC Blocking Voltage (VDC): 1000VRMS Voltage (VR(RMS)): 700VPeak Forward Surge Current (IFSM): 40A (8.3ms single half sine wave)Instantaneous Forward Voltage (VF): 1.0VReverse Current (IR) at 25°C: 10µAReverse Current (IR) at 125°C: 500µAThermal Resistance Junction to Ambient (RθJA): 36°C/WThermal Resistance Junction to Lead (RθJL): 13°C/WOperating Junction Temperature (TJ): -55°C to +125°CStorage Temperature Range (TSTG): -55°C to +150°CPackage Includes:1 × W10 1.5A 1000V Single Phase Bridge Rectifier Module - 4 Pin Lead Round Package

INR 13 · In stock
