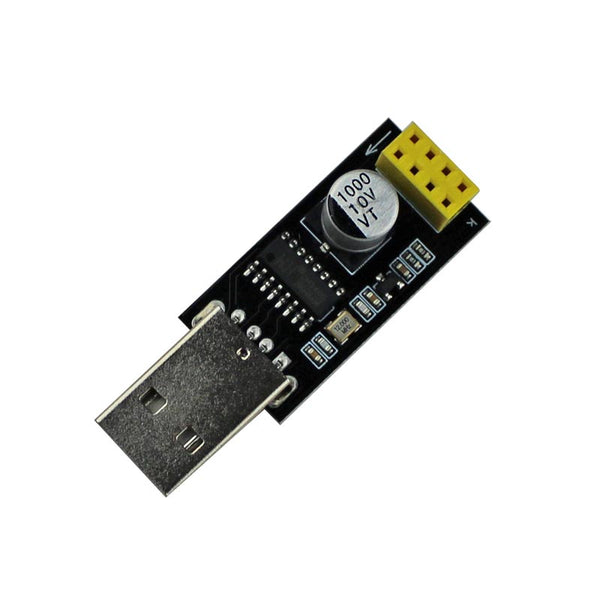

ESP8266 Adapter Programmer / USB TO UART Converter for ESP8266 ESP-01

It is difficult to Programmer ESP8266 using multiple wires but not with this USB to UART/ESP8266 Adapter Programmer. It is an adapter cum converter for ESP-01 Wi-Fi Modules with CH340G Chip that converts the signal from a USB interface to a PC / laptop to match a serial module ESP8266. This converter module has a CH340G chip. It is compatible and supported with most Windows systems. Since CH340G driver IC is available onboard, it is easy to use with a computer or laptop and opens the debugging feature of ESP-01. Plug the ESP-01 directly plugged into the yellow pin header without any connecting wire. ESP8266 Adapter Programmer Specification:Working voltage: 4.5V – 5.5V (Onboard 3.3v LDO Regulator)Working current: 300mA (LDO regulator can supply).CH340 Serial ConverterSupports all basic windows versions.Uses integrated 1000μF solid capacitors to ensure the current supplyESP8266 Adapter Programmer Applications:Programming ESP8266USB to UART ConverterDebugging Literature on ESP8266 Adapter Programmer:Programmer ESP8266 ESP-01 USB Serial Programmer Additional Resources:CH340 datasheetCH340 driverPackage Contains1x ESP8266 Adapter Programmer

INR 62 · In stock
