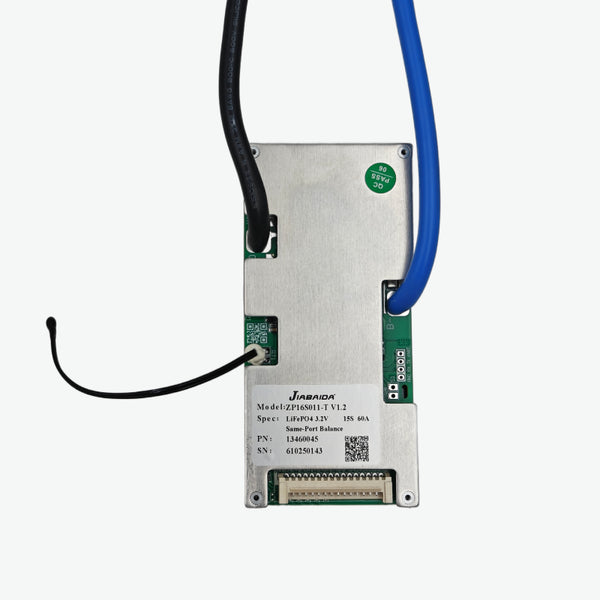

Jiabaida (JBD) LiFePo4 15S 48V 60A Battery Management System - BMS Protection Board

Jiabaida (JBD) LiFePo4 15S 48V 60A is a robust Battery Management System (BMS) based on the ZP16S011 hardware, engineered for 15-cell LiFePo4 battery packs requiring moderate to high discharge current. It offers intelligent passive balancing and comprehensive protection features such as overcharge, over-discharge, overcurrent, and short circuit protection. This BMS is ideal for medium- to high-demand applications like solar storage systems, electric bikes, and mobile power units.Jiabaida (JBD) LiFePo4 15S 48V 60A BMS Features:60A continuous discharge capabilityPassive balancing for optimized battery lifeIntegrated over-voltage, under-voltage, short circuit, and overcurrent protectionZP16S011 hardware ensures efficient and stable performanceSuitable for powerful LiFePo4 battery systemsJiabaida (JBD) LiFePo4 15S 48V 60A BMS Specification:SpecificationValueModelZP16S011Supported Cells15S (LiFePo4)Nominal Voltage (V)48VCharge Voltage (V)54.75VCharge Current (A)20AContinuous Discharge Current (A)60ABalance Current (mA)30 ±5Overcharge Detect Voltage (V)3.75 ±0.05Overcharge Release Voltage (V)3.55 ±0.05Over Discharge Detect Voltage (V)2.20 ±0.1Over Discharge Release Voltage (V)2.50 ±0.1Operating Temperature (°C)-20 to 70Dimensions (mm)115 x 54 x 12 Package Includes:1 x Jiabaida (JBD) LiFePo4 15S 48V 60A Battery Management System - BMS Protection Board
