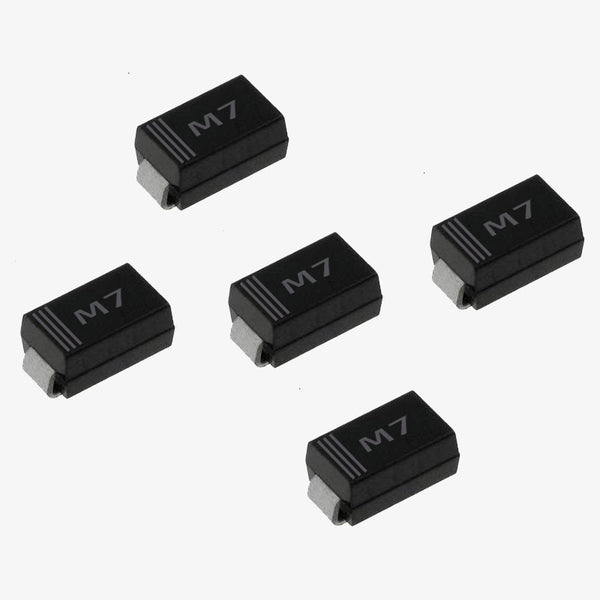

M7 / 1N4007 SMD Diode (Pack of 10)

M7 Diode is nothing but SMD version of 1N4007 Diode. Features of M7 Reverse voltage 50 to 1000 Volts with Forward Current of 1.0 Ampere.Features : SMD Version of 1N4007Forward Current: 1AMax Repetitive Reverse Voltage: 1000 VMax RMS Voltage: 700VMax DC Blocking Voltage: 1000VMax instantaneous forward voltage: 1.1 VMechanical Characteristics :Case : JEDEC DO-214AC molded plastic bodyTerminals : Solder plated, solderable per MIL-STD-750,Method 2026Polarity : Color band denotes cathode end.Specifications :Peak Repetitive Reverse Voltage (VRRM)1000VMaximum RMS Voltage (VRMS)700VMaximum DC Blocking Voltage (VDC)1000VMaximum Average Forward Rectified Current (IFAV)1ANon-Repetitive Peak Forward Surge Current (IFSM)30AOperating Junction Temperature Range (TJ)− 65°C to +175°CStorage Temperature Range (Tstg)− 65°C to +175°CQuantity10 PiecesPackage includes :M7 / 1N4007 SMD Diode x 10piece

INR 8 · In stock
