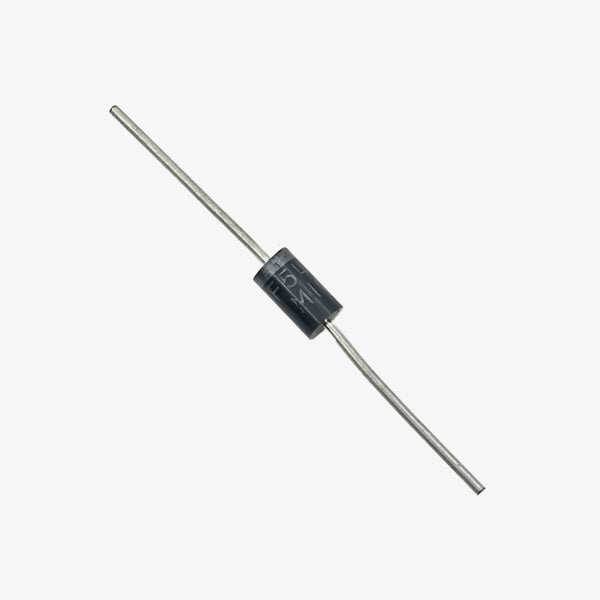

UF5408 Ultra Fast Rectifier Diode 3A

The UF5408 Ultra Fast Rectifier Diode 3A is designed for rapid AC to DC rectification with high surge tolerance and reliability. Its diffused junction and low forward voltage drop make it ideal for high-efficiency power supplies, inverters, and industrial applications..CLICK HERE FOR DATASHEETFeatures:Diffused junction for fast and reliable rectificationLow forward voltage drop for efficient operationHigh current and surge capability for demanding loadsCathode band marking for polarity identificationSpecifications:Maximum Repetitive Peak Reverse Voltage (VRRM): 1000 VMaximum RMS Voltage (VRMS): 700 VMaximum DC Blocking Voltage (VDC): 1000 VAverage Rectified Output Current (IO): 3.0 APeak Forward Surge Current (IFSM): 150 AForward Voltage (VF) at 3 A: 1.7 VPeak Reverse Current (IR) at 25°C: 10 µAPeak Reverse Current (IR) at 100°C: 100 µAReverse Recovery Time (trr): 75 nsTypical Junction Capacitance (CJ): 50 pFOperating Temperature Range (TJ): -65°C to +125°CStorage Temperature Range (TSTG): -65°C to +150°CPackage Includes:1 × UF5408 Ultra Fast Rectifier Diode 3A

INR 10 · In stock
