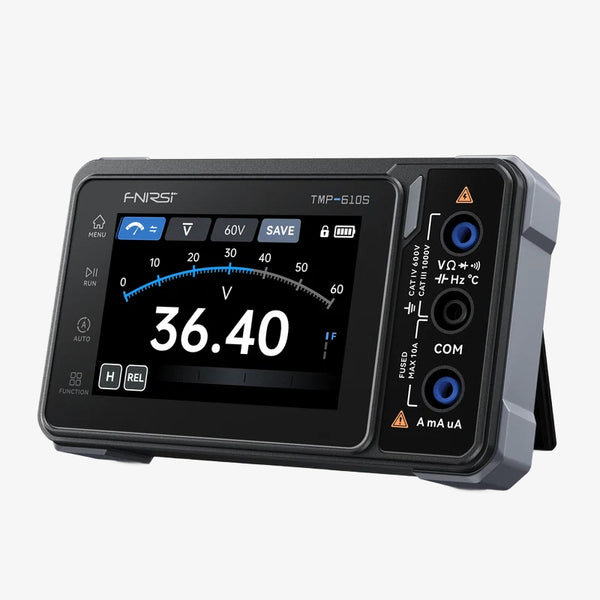

FNIRSI® TMP-610S 3-in-1 Digital Multimeter DSO DDS Generator

FNIRSI® TMP-610S 3-in-1 Digital Multimeter DSO DDS Generator is a multifunctional portable test instrument that combines a 60,000-count True RMS digital multimeter, 10MHz digital oscilloscope, and 50kHz DDS signal generator in a single compact device. It features a 3.5-inch IPS touchscreen, 48MSa/s oscilloscope sampling rate, 13 built-in signal waveforms, automatic measurement scanning, AC+DC trend analysis, Bluetooth connectivity for multimeter functions, waveform analysis, data logging, and USB Type-C charging. With its integrated measurement and signal-generation capabilities, the TMP-610S is suitable for electronics troubleshooting, PCB testing, circuit development, repair, laboratory work, and field servicing.FNIRSI® TMP-610S 3-in-1 Digital Multimeter DSO DDS Generator ManualFeatures:3-in-1 design combining digital multimeter, oscilloscope, and DDS signal generator.60,000-count high-precision True RMS digital multimeter.10MHz digital oscilloscope.48MSa/s maximum oscilloscope sampling rate.50kHz DDS signal generator.Supports 13 built-in signal waveforms.3.5-inch IPS color touchscreen.Smart touchscreen interface with multiple display modes.Automatic measurement type and range scanning.Supports AC+DC combined measurement and trend analysis.Supports minimum, maximum, and trend recording.Multi-point data logging.Bluetooth connectivity for DMM measurements.Supports wireless measurement monitoring and data logging through mobile app.Supports voltage, current, resistance, capacitance, frequency, temperature, diode, and continuity measurements.Built-in replaceable fuse.USB Type-C charging interface.Built-in 3000mAh rechargeable battery.Firmware upgrade support.Waveform storage and USB data export.Compact handheld design for laboratory and field use.Basic Specifications:ParameterValueBrandFNIRSI®ModelTMP-610SProduct Type3-IN-1 Digital Multimeter / DSO / DDS GeneratorMain FunctionsDMM / Oscilloscope / Signal GeneratorMultimeter Resolution60,000 CountsMultimeter TypeTrue RMSOscilloscope Bandwidth10MHzOscilloscope Sampling Rate48MSa/sSignal Generator FrequencyUp to 50kHzSignal Generator Waveforms13Display TypeIPS Color TouchscreenDisplay Size3.5 InchConnectivityBluetoothBluetooth FunctionDMM Data SynchronizationBatteryRechargeable Lithium BatteryBattery Capacity3000mAhCharging InterfaceUSB Type-CFuseBuilt-In Replaceable FuseData LoggingSupportedFirmware UpgradeSupportedWaveform StorageSupportedUSB Data ExportSupportedDesignPortable HandheldDigital Multimeter Specifications:ParameterValueMeasurement TypeTrue RMSDisplay Count60,000DC VoltageSupportedAC VoltageSupportedDC CurrentSupportedAC CurrentSupportedResistanceSupportedCapacitanceSupportedFrequencySupportedTemperatureSupportedDiode TestSupportedContinuity TestSupportedAuto RangeSupportedAuto ScanSupportedAC+DC MeasurementSupportedMin / Max MeasurementSupportedTrend AnalysisSupportedData LoggingSupportedData HoldSupportedRelative MeasurementSupportedBluetooth MonitoringSupportedMobile App SyncSupportedReplaceable FuseSupportedOscilloscope Specifications:ParameterValueOscilloscope TypeDigital Storage OscilloscopeNumber of Channels1 CHAnalog Bandwidth10MHzMaximum Sampling Rate48MSa/sWaveform DisplayReal-TimeInput CouplingAC / DCTriggerSupportedTrigger ModesAutomatic / Normal / Single*Waveform AnalysisSupportedWaveform StorageSupportedCursor MeasurementSupportedAutomatic MeasurementSupportedPeak DetectionSupportedTime Base AdjustmentSupportedVertical Scale AdjustmentSupportedWaveform ZoomSupportedScreenshot / Data ExportSupportedDDS Signal Generator Specifications:ParameterValueGenerator TypeDDS Signal GeneratorMaximum Frequency50kHzWaveform Count13Waveform OutputSupportedFrequency AdjustmentSupportedAmplitude AdjustmentSupportedDuty Cycle AdjustmentSupportedOffset AdjustmentSupportedFrequency SweepSupported*Signal OutputDDSApplicationCircuit Testing, Signal Injection & TroubleshootingDisplay & Smart Functions:ParameterValueDisplay TypeIPS Color ScreenDisplay Size3.5 InchTouchscreenSupportedDisplay ModesMultipleReal-Time Measurement DisplaySupportedTrend DisplaySupportedMin / Max RecordingSupportedData LoggingSupportedBluetooth AppSupportedWireless Data MonitoringSupportedMeasurement ExportSupportedWaveform AnalysisSupportedFirmware UpgradeSupportedPower & Design Specifications:ParameterValueBattery TypeRechargeable Lithium BatteryBattery Capacity3000mAhCharging InterfaceUSB Type-CChargingSupportedOperating ModePortable / HandheldFuse ProtectionBuilt-In Replaceable FuseData InterfaceUSB Type-CWireless InterfaceBluetoothDesignCompact HandheldApplicationElectronics Testing, Repair & DevelopmentExplore the FNIRSI Collection featuring advanced digital multimeters, oscilloscopes, signal generators, laser rangefinders, thermal cameras, USB testers, and precision electronic test equipment. Ideal for electronics engineers, technicians, makers, DIY enthusiasts, troubleshooting, circuit analysis, industrial maintenance, and professional measurement applications.Also Check These Products:-FNIRSI HRM-10 Battery Voltage Internal Resistance TesterFNIRSI LCR-P1 Multifunction Transistor Capacitor TesterFNIRSI LCR-ST1 Mini Smart Tweezer LCR SMD ESR TesterFNIRSI DMC-100 DC AC Current Voltage Digital Clamp MultimeterFNIRSI DMT-99 Intelligent Color Screen Digital MultiMeterPackage Includes:1 x FNIRSI® TMP-610S 3-in-1 Digital Multimeter DSO DDS Generator1 x P6100 Oscilloscope Probe1 x DMM Test Lead Set1 x Alligator Clip Set1 x Probe Accessories1 x Power Adapter1 x USB Type-C Charging Cable1 x Storage Case1 x User Guide

Check price on store · In stock
