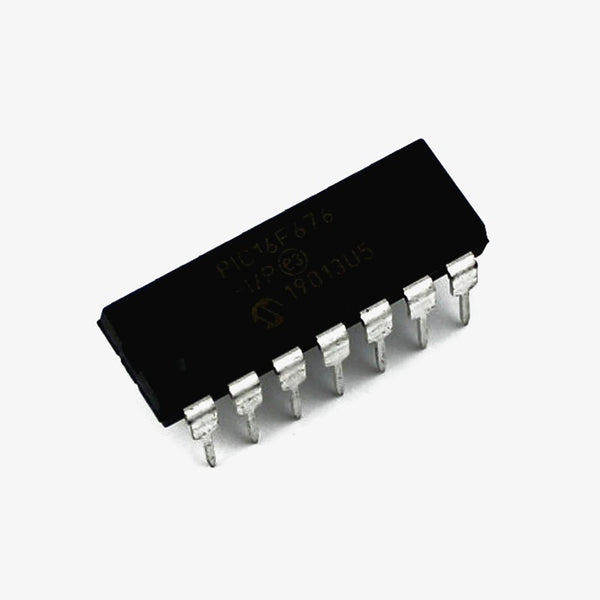

PIC16F676 Microcontroller IC - 14 Pin DIP Package

PIC16F676 is powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS Flash-based 8-bit microcontroller packs Microchip’s powerful PIC® MCU architecture into a 14-pin package and features 8 channels for the 10-bit Analog-to-Digital (A/D) converter, 1 comparator and 128 bytes of EEPROM data memory. This device is easily adapted for automotive, industrial, appliances and consumer entry-level product applications that require field re-programmability.It has 128 bytes of EEPROM and 64 Bytes of SRAM. For debugging and Programming, it has an ICD2 interface with optional header adapter. The Pull-up state of the pins can be programmed to decrease additional resistor counts in applications. PIC16F676 pinout: PIC16F676 SpecificationsSpecification: 128 bytes of EEPROM Data MemoryProgrammable pull-up resistorsIndividually selectable analog channelsICD2 programming support or debugging support with optional header adapter8 oscillator selections including precision 4 MHz RC oscillator with programmable calibration and Power-on ResetProgram Memory Type: FlashProgram Memory (KB): 1.75CPU Speed (MIPS): 5RAM Bytes:64Data EEPROM (bytes): 128Digital Communication Peripherals:1-UART,Timers:1 x 8-bit, 1 x 16-bitADC:8 ch, 10-bitComparators:1Temperature Range (C): -40 to 125Operating Voltage Range (V): 2 to 5.5Pin Count: 14Cap Touch Channels: 8PIC16F676 Applications:Analog to Digital conversionData processingSmall control projectsLogic devicesSmall Industrial applications PIC16F676 Dimension and footprint:Package Contains1x PIC16F676 Microcontroller

INR 97 · In stock
