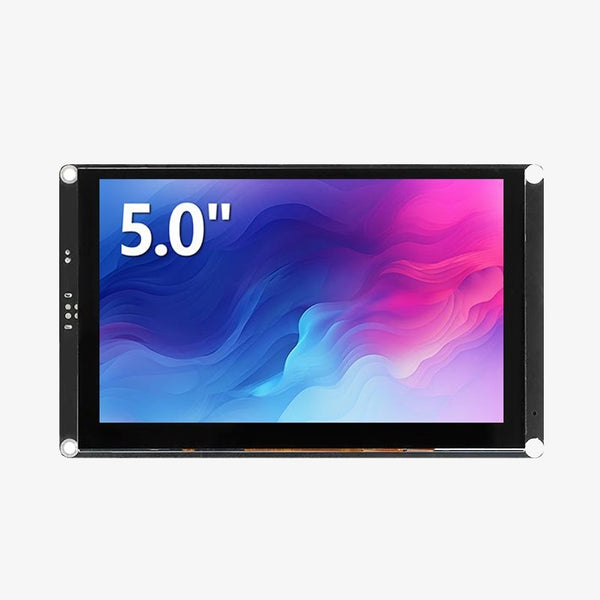

CrowPanel Advanced 5inch ESP32-P4 HMI AI Display 800x480 IPS Touch Screen with WiFi 6-Without Camera

CrowPanel Advanced 5-Inch ESP32-P4 HMI AI Display 800×480 IPS Touchscreen with Wi-Fi 6 – Without Camera is a high-performance human-machine interface (HMI) development platform powered by the ESP32-P4 dual-core RISC-V processor. It features a 5-inch IPS capacitive touchscreen, 16MB Flash, 32MB PSRAM, Wi-Fi 6, Bluetooth 5.3, audio interfaces, and multiple expansion connectors. The display is suitable for embedded-system development, smart home control panels, industrial monitoring, IoT devices, and interactive AI applications.CrowPanel Advanced 5-Inch ESP32-P4 HMI AI Display DatasheetFeatures:ESP32-P4 dual-core 32-bit RISC-V processor operating at up to 400MHzDedicated ESP32-C6 wireless module for Wi-Fi 6 and Bluetooth 5.35-inch IPS touchscreen with 800×480 resolutionCapacitive multi-touch support for up to 5 touch points16MB Flash and 32MB PSRAM for application storage and processing16.7 million display colors with 8-bit color depth178° viewing angleIntegrated microphone and audio amplifier circuitrySpeaker output connector for audio playbackDual USB Type-C connectivity for programming and USB communicationUART, I2C and GPIO expansion interfacesMicroSD card interface for external storageDedicated lithium battery connector with charging circuitReplaceable wireless module interface supporting optional communication modulesSupports LVGL-based graphical user interfacesCompatible with Arduino IDE and ESP-IDF development environmentsReset and boot controls for system operation and firmware programmingMounting holes for enclosure and panel integrationSpecifications:SpecificationValueBrandElecrowProduct SeriesCrowPanel AdvancedModelDHE04005DProduct TypeESP32-P4 HMI AI DisplayMain ProcessorESP32-P4NRW32Processor Architecture32-bit RISC-VHigh-Performance CPU FrequencyUp to 400MHzLow-Power CPU FrequencyUp to 40MHzFlash Memory16MBPSRAM32MBHigh-Performance Core Memory768KB L2MEMLow-Power Core SRAM32KBTightly Coupled Memory8KB TCMDisplay Size5 inchesDisplay TypeIPS TFTResolution800×480 pixelsTouch TechnologyCapacitiveMaximum Touch Points5Viewing Angle178°Brightness400cd/m²Color Depth16.7 million colorsWireless ControllerESP32-C6-MINI-1Wi-Fi2.4GHz Wi-Fi 6BluetoothBluetooth 5.3 and BLEAudio InterfacesMicrophone and SpeakerExpansion InterfacesUSB 2.0, UART, I2C, GPIOStorage InterfaceMicroSD CardBattery Interface3.7–4.2V Lithium BatteryPower Input5V DC, 2AOperating Temperature-20°C to +70°CStorage Temperature-30°C to +80°CDimensions131 × 80 × 15mmWeight320gDevelopment EnvironmentsArduino IDE, ESP-IDFExplore the latest Elecrow products at Quartz Components. Also check these new Elecrow Products for the best dispaly and products. Discover high-quality displays, development boards, and innovative electronics solutions.Shop Elecrow products for your next electronics project.Package Includes:1 × CrowPanel Advanced 5-Inch ESP32-P4 HMI AI Display (Without Camera)1 × USB-A to USB Type-C Cable1 × 4-Pin Crowtail/Grove Connection Cable

Check price on store · In stock
