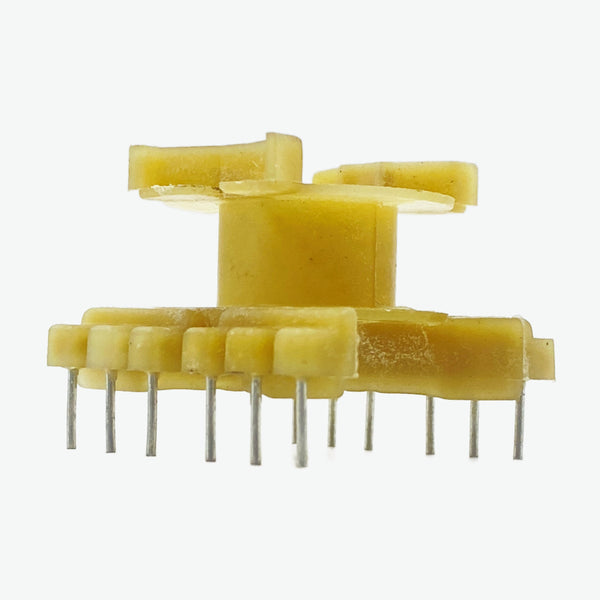

PQ3220 Transformer Vertical Bobbin 12 Pin

The PQ3220 Transformer Vertical Bobbin (12 Pin) is designed for high-frequency transformers used in power conversion applications like Switched Mode Power Supplies (SMPS), inverters, and DC-DC converters. The vertical design allows for a compact PCB footprint while utilizing vertical space, making it a great choice for applications where space is constrained but efficiency is crucial.Features:Core Type: PQ3220Pin Count: 12 pins (dual row configuration)Bobbin Type: Vertical mounting, designed to save horizontal space on the PCB while maximizing the winding area in the vertical directionMaterial: High-quality plastic, often flame-retardant (UL94-V0), to ensure durability and safety in high-power applicationsApplications: Used in transformers for SMPS, high-frequency inverters, DC-DC converters, and other power electronics circuitsWinding Support: Supports multiple winding slots for primary and secondary windings, allowing for complex transformer configurationsSpecifications:Pin Pitch: Standard pin spacing of approximately 5 mm (varies by manufacturer), ensuring compatibility with standard PCB layoutsDimensions: Designed to fit the PQ3220 core, providing ample winding space for high-frequency applications while maintaining a compact form factorWinding Area: Large window area to support dense windings, which is critical for efficient high-power and high-frequency energy transferMounting: Vertical bobbin for through-hole mounting on PCBs, saving horizontal space while allowing for efficient use of vertical spaceThermal Performance: Designed to handle the heat generated in high-frequency switching applications, ensuring reliable operation in power circuits

INR 26 · In stock
