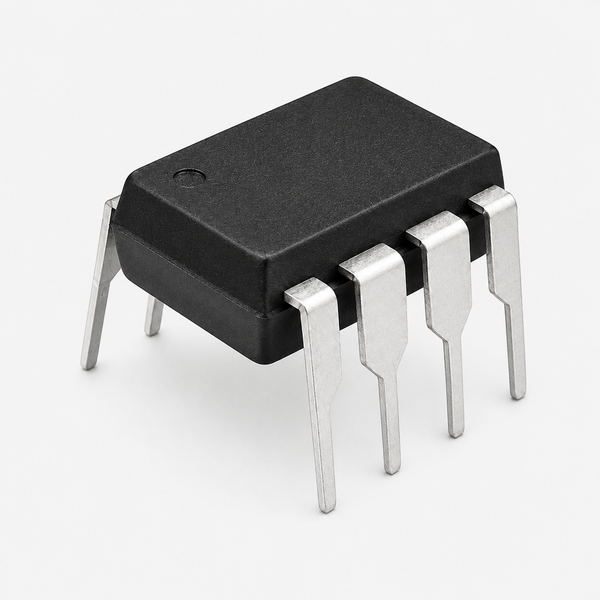

MC33153P Single IGBT Gate Driver IC - DIP-8 Package

MC33153P Single IGBT Gate Driver IC - DIP-8 Package is a high-speed, high-current gate driver IC designed to drive IGBTs and power MOSFETs in switching power applications. It provides high peak output current, fast switching performance, undervoltage lockout (UVLO), and excellent noise immunity, making it ideal for motor drives, inverters, UPS systems, SMPS, and industrial power control circuits. The DIP-8 package enables easy through-hole mounting and prototyping.Features:Single High-Speed IGBT/MOSFET Gate DriverHigh Peak Output CurrentFast Rise and Fall TimesUndervoltage Lockout (UVLO)Wide Supply Voltage RangeTTL and CMOS Compatible InputHigh Noise ImmunityLow Propagation DelayHigh Switching Frequency CapabilityPush-Pull Totem Pole Output StageDIP-8 Through-Hole PackageSuitable for High Power Switching ApplicationsIdeal for IGBT & MOSFET Gate DrivingRoHS CompliantSpecifications:ParameterValueProduct TypeSingle IGBT/MOSFET Gate Driver ICModelMC33153PPackageDIP-8Supply Voltage (VCC)10V to 18VPeak Output Current±1.5A (Typical)Output ConfigurationPush-Pull Totem PoleInput LogicTTL / CMOS CompatiblePropagation Delay100ns (Typical)Rise Time40ns (Typical)Fall Time30ns (Typical)Undervoltage LockoutYesOperating Temperature-40°C to +85°CMounting TypeThrough HoleApplicationsIGBT Gate Driving, MOSFET Drivers, Motor Drives, UPS Systems, SMPS, DC-DC Converters, InvertersRoHS ComplianceYes Pin Configuration:PinFunction1Input2Enable3GND4Output5VCC6NC7NC8NC Also Check These Out:AN7112 Audio Power Amplifier ICTDA2822M Amplifier ICHT12D (RF Decoder) ICPackage Includes:1 x MC33153P Single IGBT Gate Driver IC - DIP-8 Package

INR 46 · In stock
