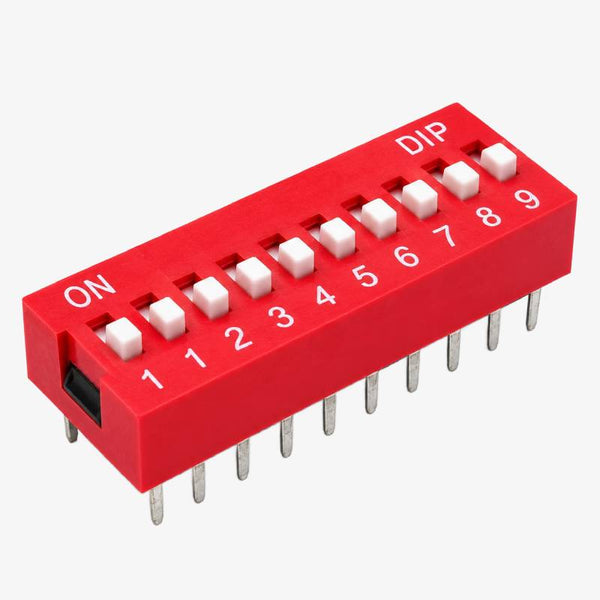

9 Position DIP Switch

9 Position DIP Switch is designed for reliable manual configuration and signal selection in electronic circuits. Ideal for PCB applications, embedded systems, and DIY electronics projects requiring compact switching solutions.9 Position DIP Switch DatasheetFeatures:9 Position DIP SwitchSurface Mount DesignGold Plated Brass TerminalsCompact and Durable ConstructionReliable Switching PerformanceHigh Mechanical LifeSuitable for PCB and Embedded ApplicationsSpecifications:ParameterValueProduct TypeDIP SwitchPositions9Mount TypeSurface MountTerminal MaterialBrass with Gold PlatingContact Rating100mA 50VDCContact Resistance500mΩ MaxInsulation Resistance100MΩ Min (500VDC)Dielectric Strength500VAC / 1 MinuteOperating Temperature-25°C to +85°CMechanical Life≥100,000 CyclesElectrical Life2,000 Cycles per PositionColorRed Also Check These Products:-3 Position DIP Switch5 Position DIP Switch7 Position DIP Switch6 Position DIP Switch4 Positions DIP SwitchPackage Includes:1 x 9 Position DIP Switch

INR 21 · In stock
